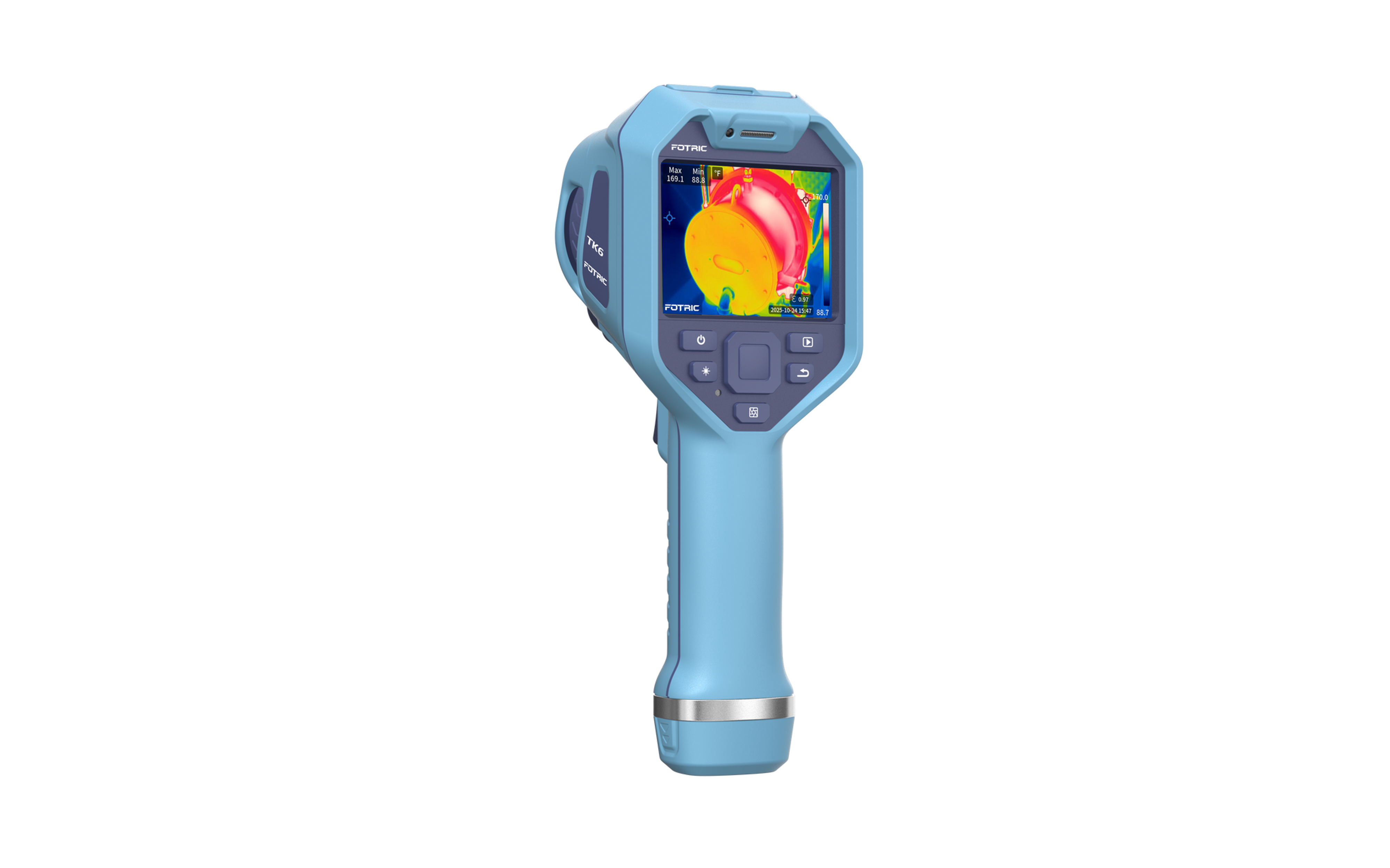

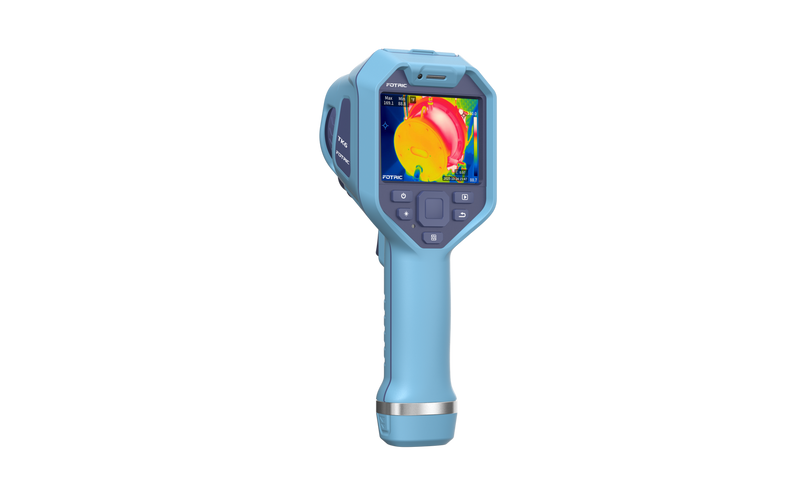

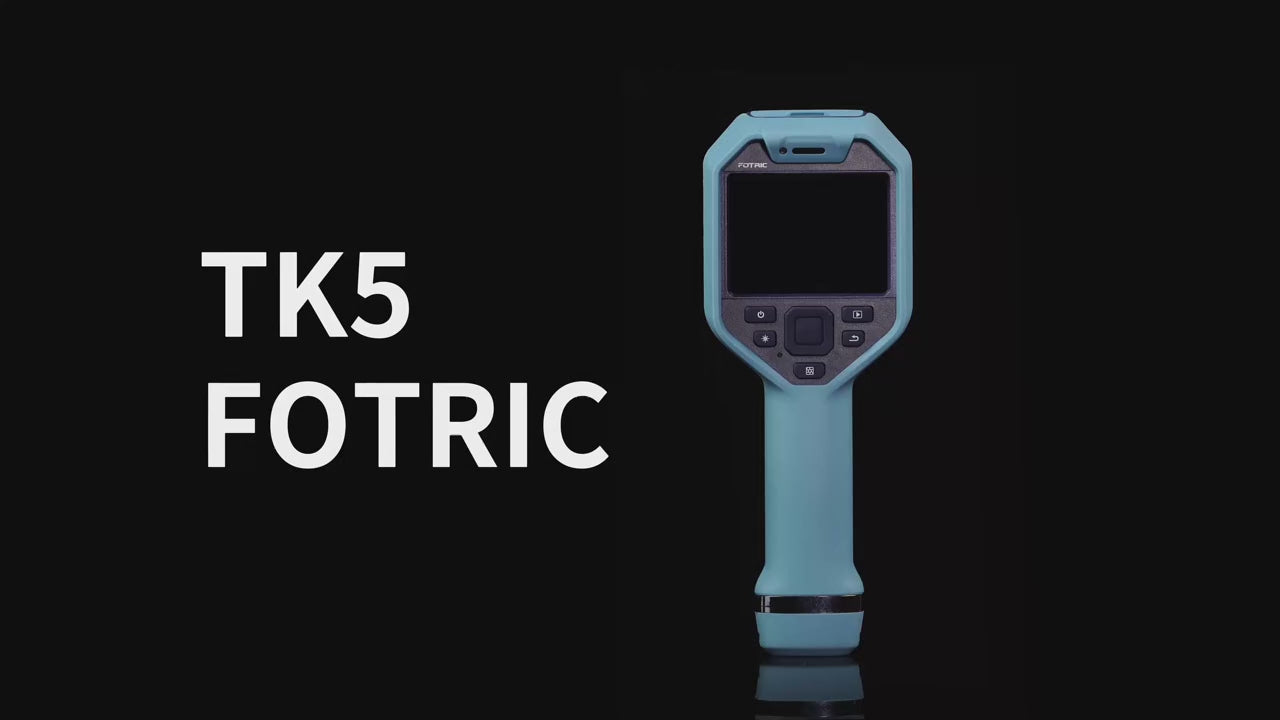

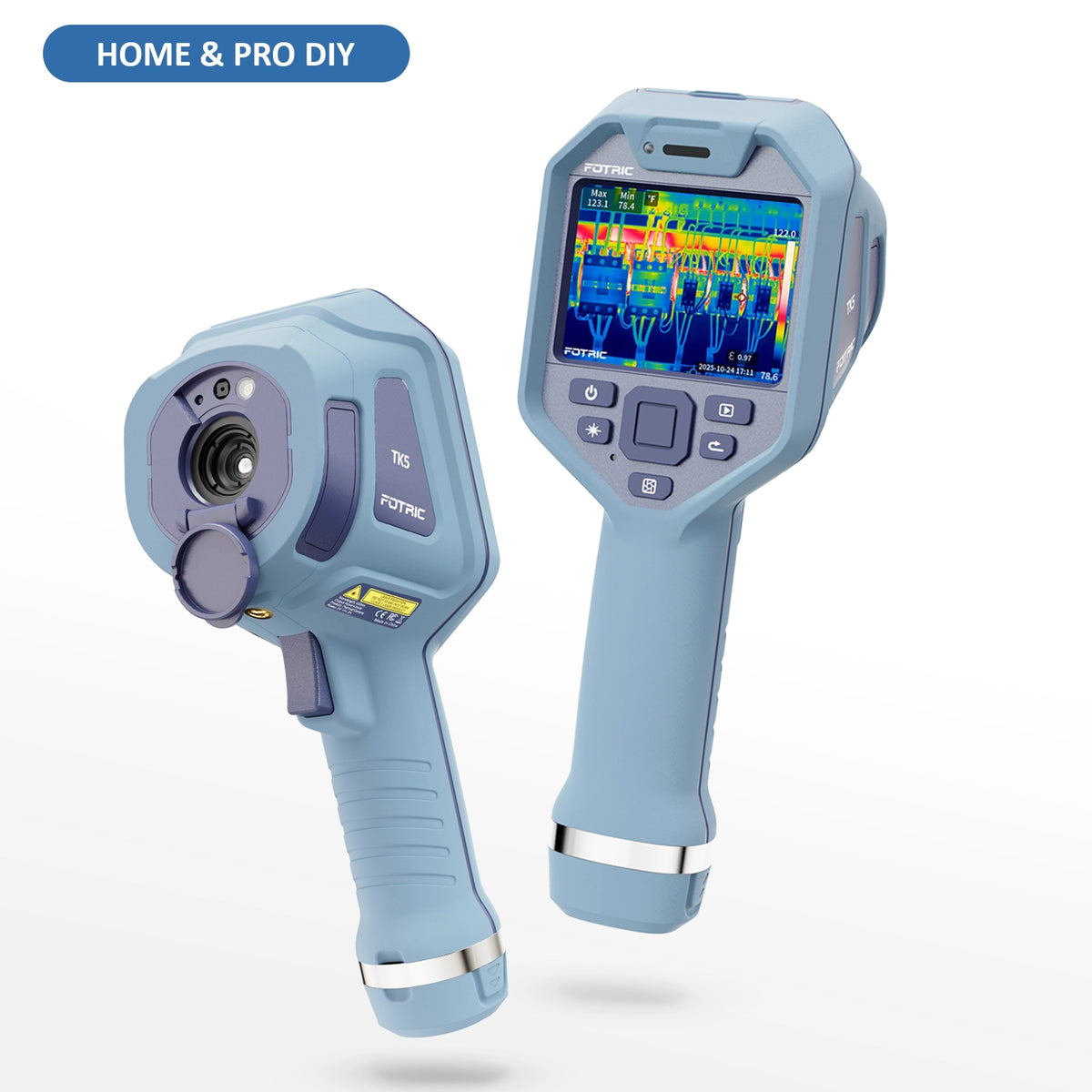

FOTRIC TK5 Thermal Imaging Camera
FOTRIC TK5 Thermal Imaging Camera, 384 x 288 IR Resolution , 25°*19° FOV, Manual Focus Thermal Imager with 5MP Visual Camera for Building, Electrical Inspections, -4°F to 1022°F, 3.5" Touch Screen
- 通常価格
- $649.00
- セール価格
- $649.00
- 通常価格
-
Shipping calculated at checkout.
- Professional-Grade 320×240 true thermal resolution delivers 76,800 raw pixels via high-quality ceramic infrared detector. Unlike software-interpolated devices, FOTRIC TK5 captures real pixel-by-pixel thermal data for stable and accurate industrial inspection.
- Featuring 12 µm pixel-pitch design and 40mK (0.04°C) thermal sensitivity, the camera detects subtle temperature differences clearly with high contrast. It efficiently spots electrical hotspots, insulation defects, HVAC malfunctions and hidden building faults.

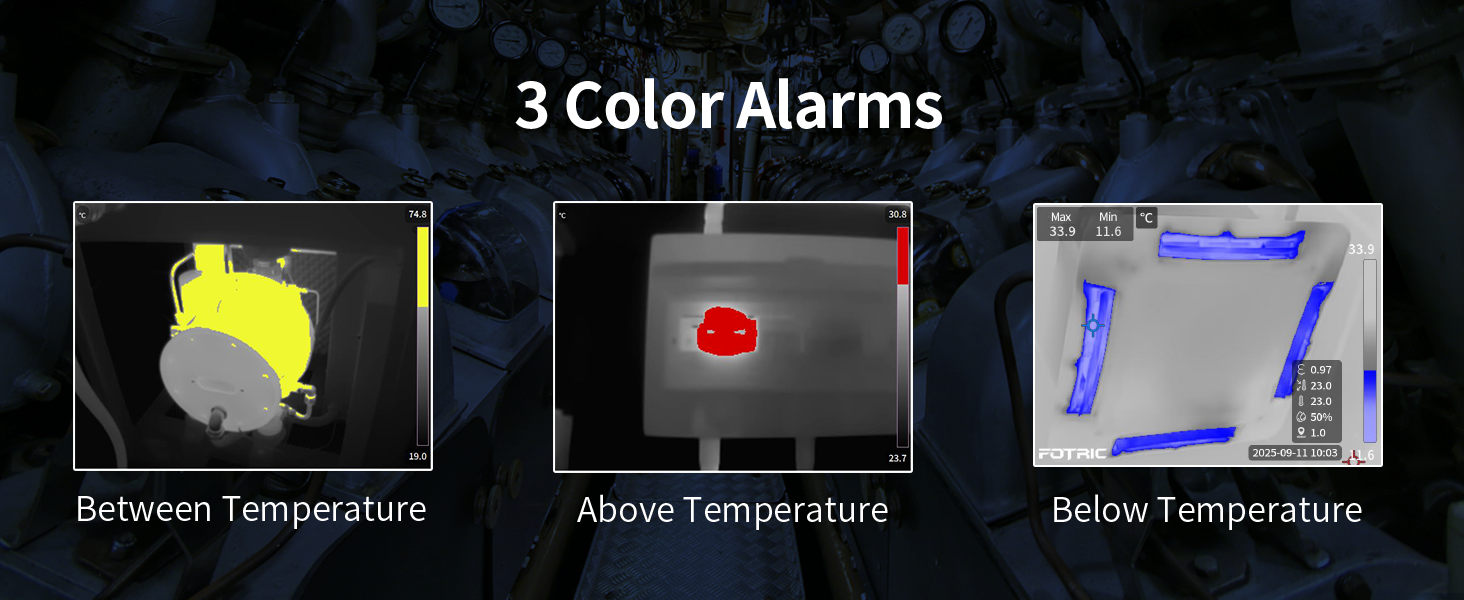

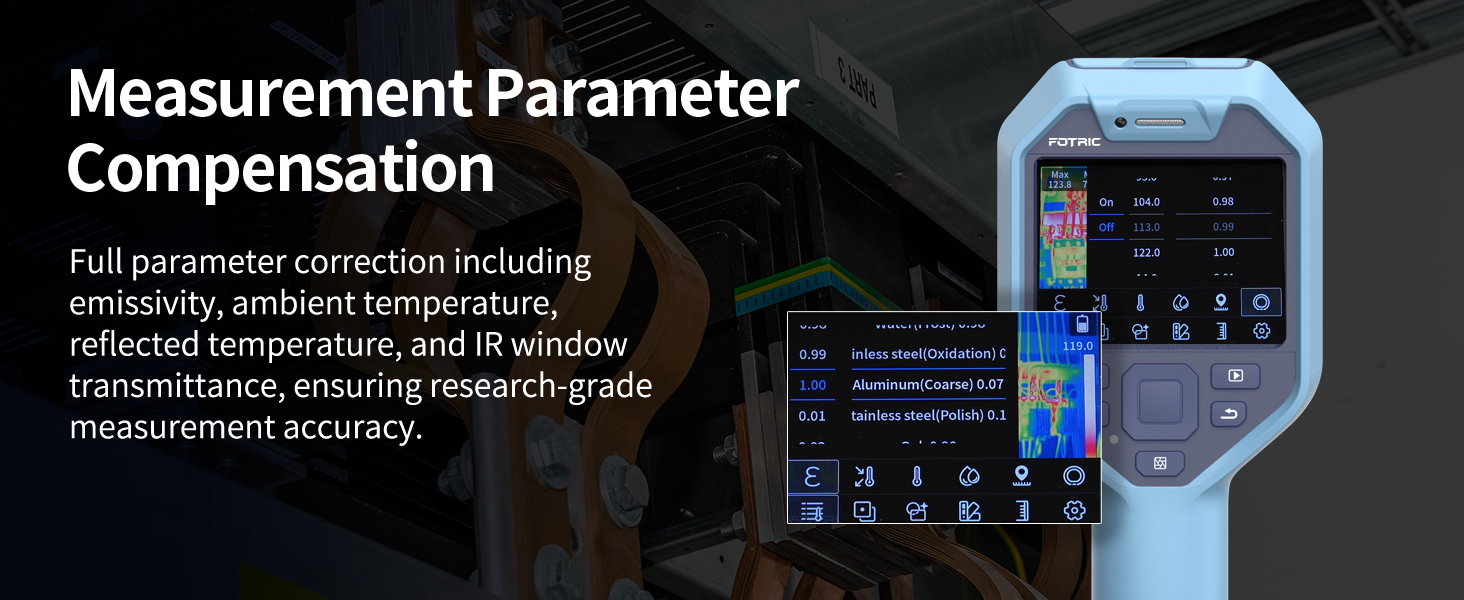

- Equipped with practical built-in diagnostic tools: auto hot/cold spot tracking, adjustable emissivity and customizable temperature color alarms. Perfect for electrical maintenance, HVAC troubleshooting, building moisture detection and home inspection tasks.

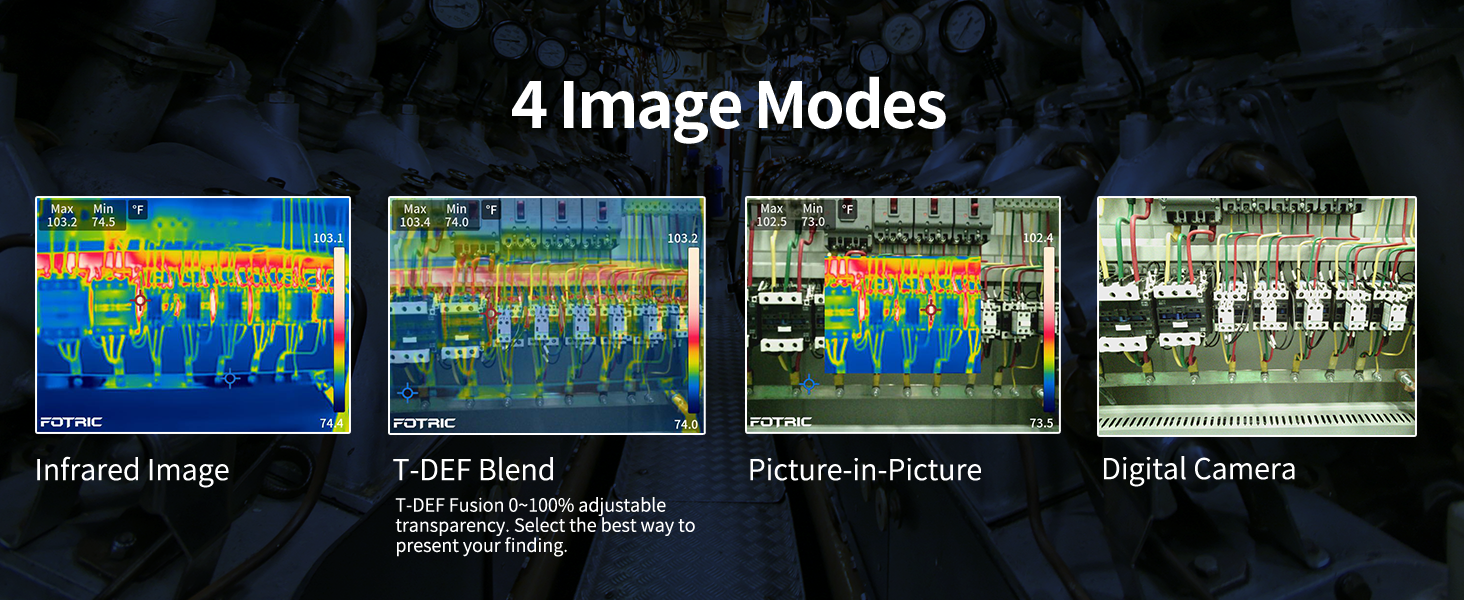

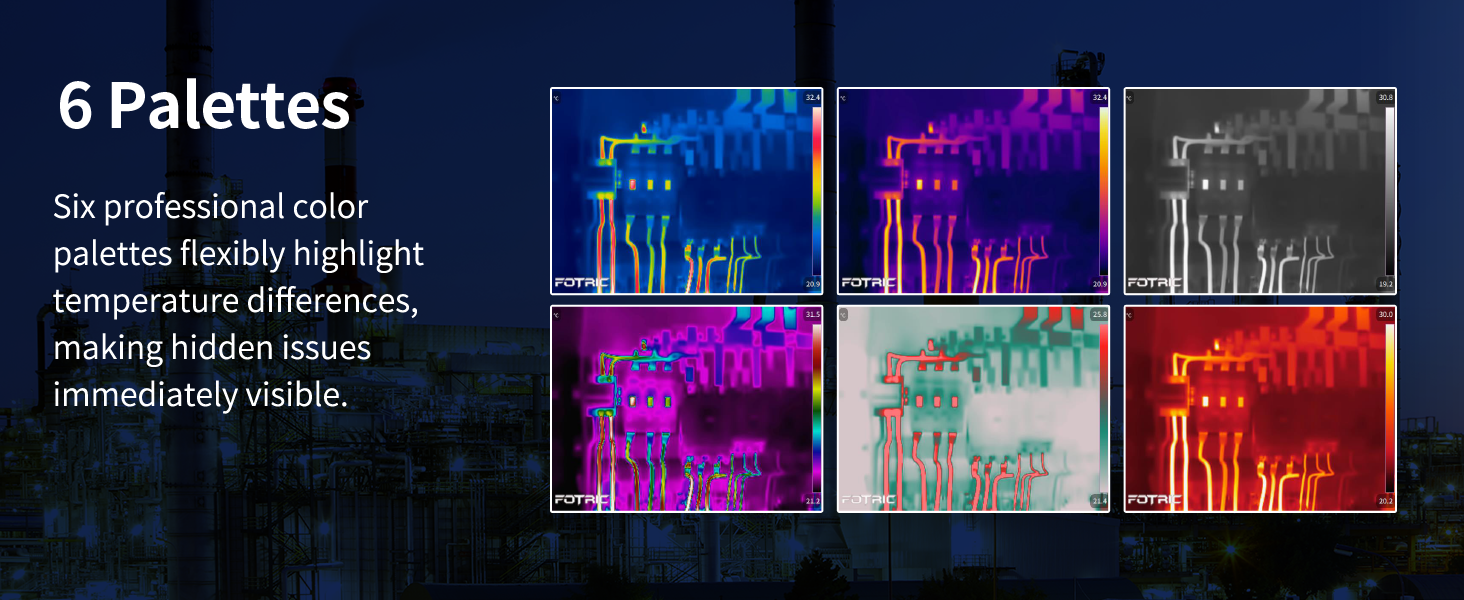

- Support 4 flexible image modes: Infrared, T-DEF Fusion, Picture-in-Picture and Digital Camera. Adopted TWB Thermal Wavelength Balancing technology to optimize color palette distribution, presenting temperature differences more intuitively for faster diagnosis.

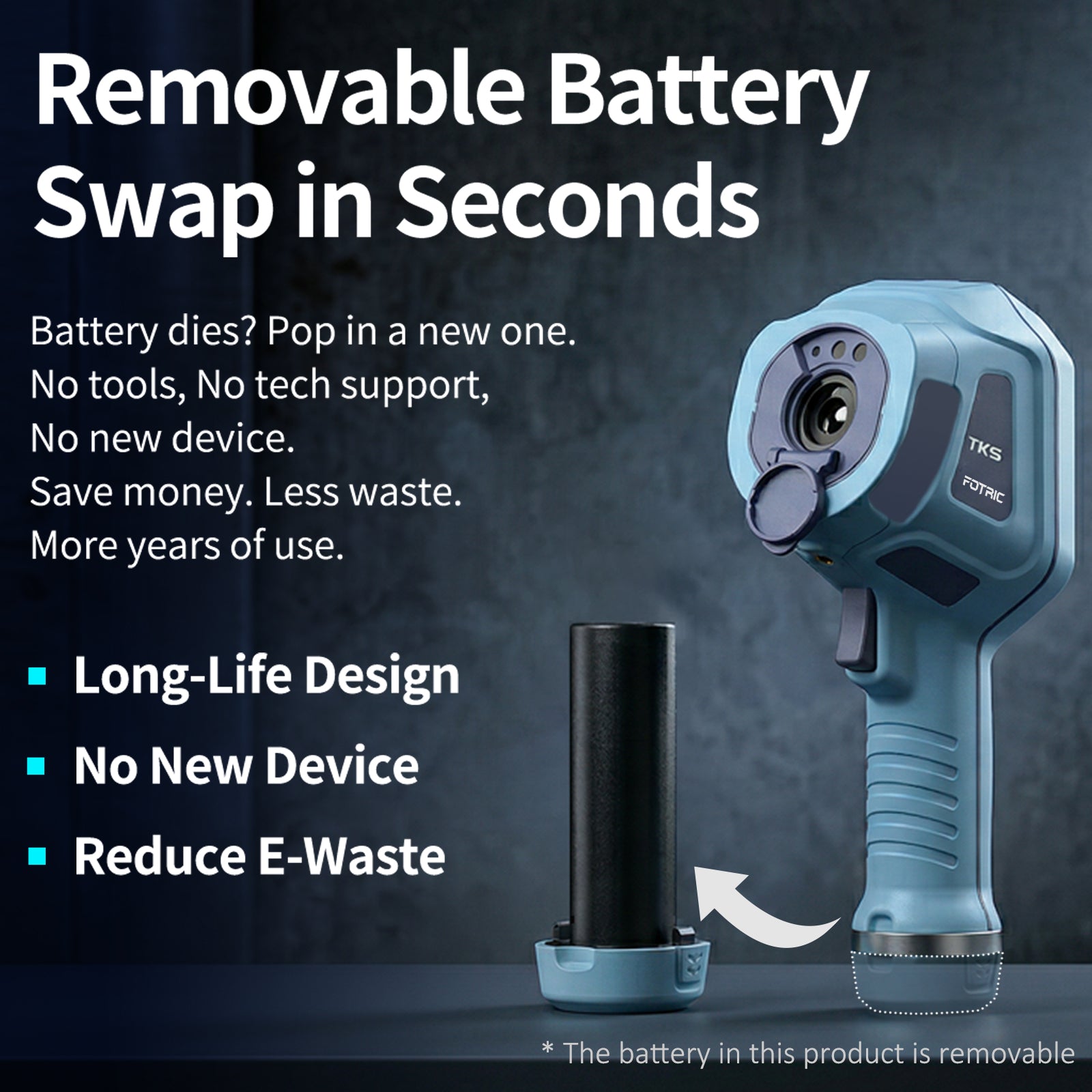

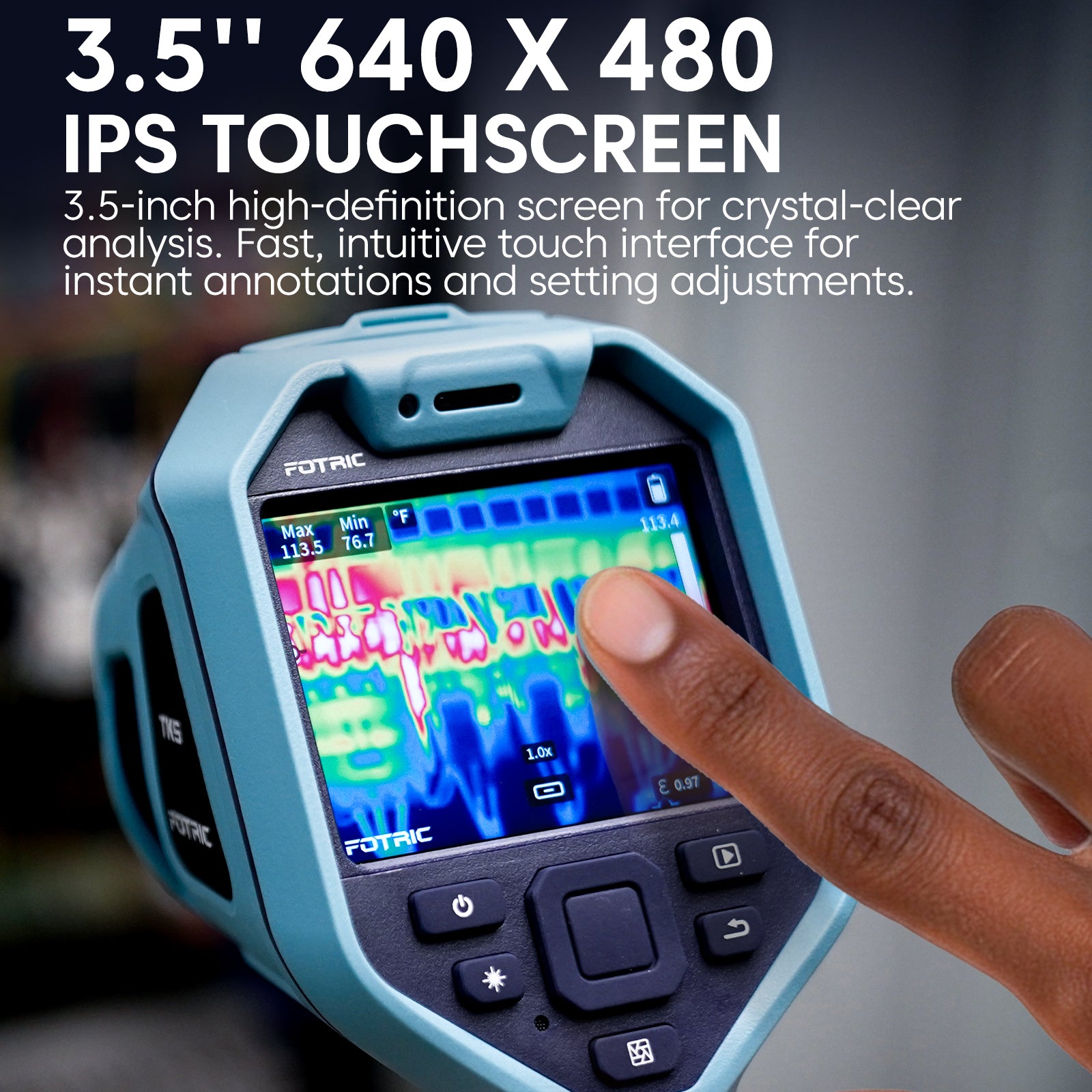

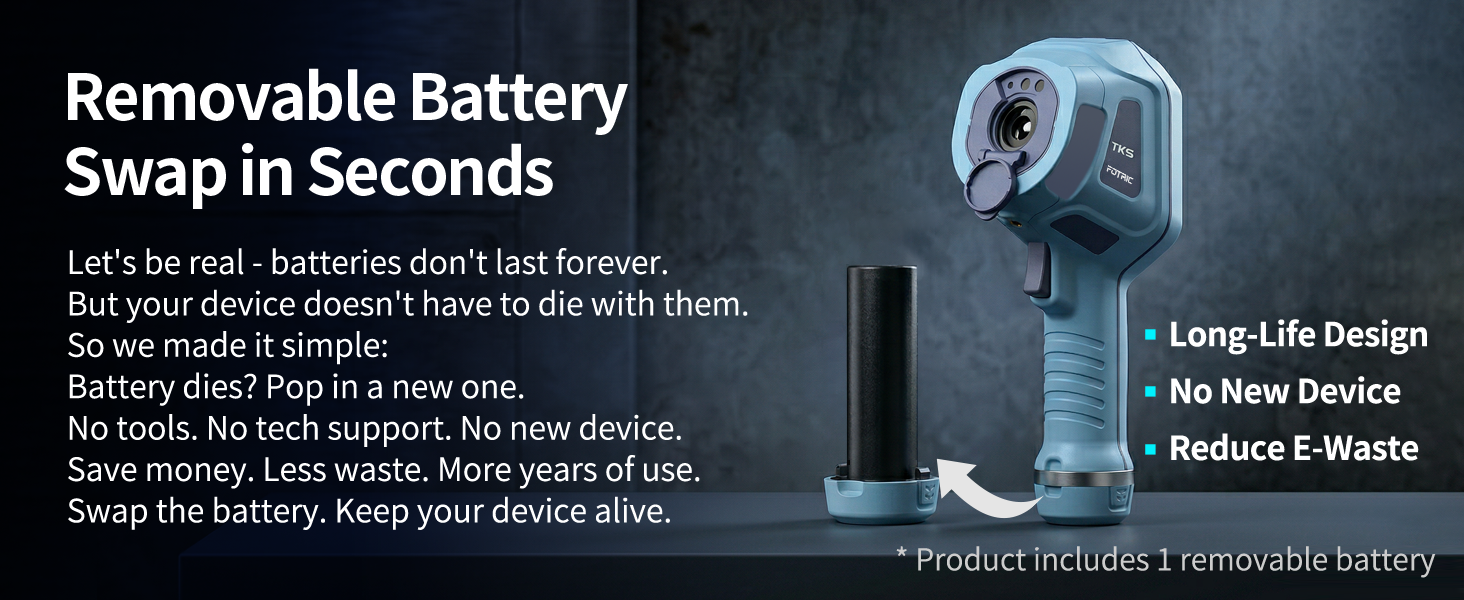

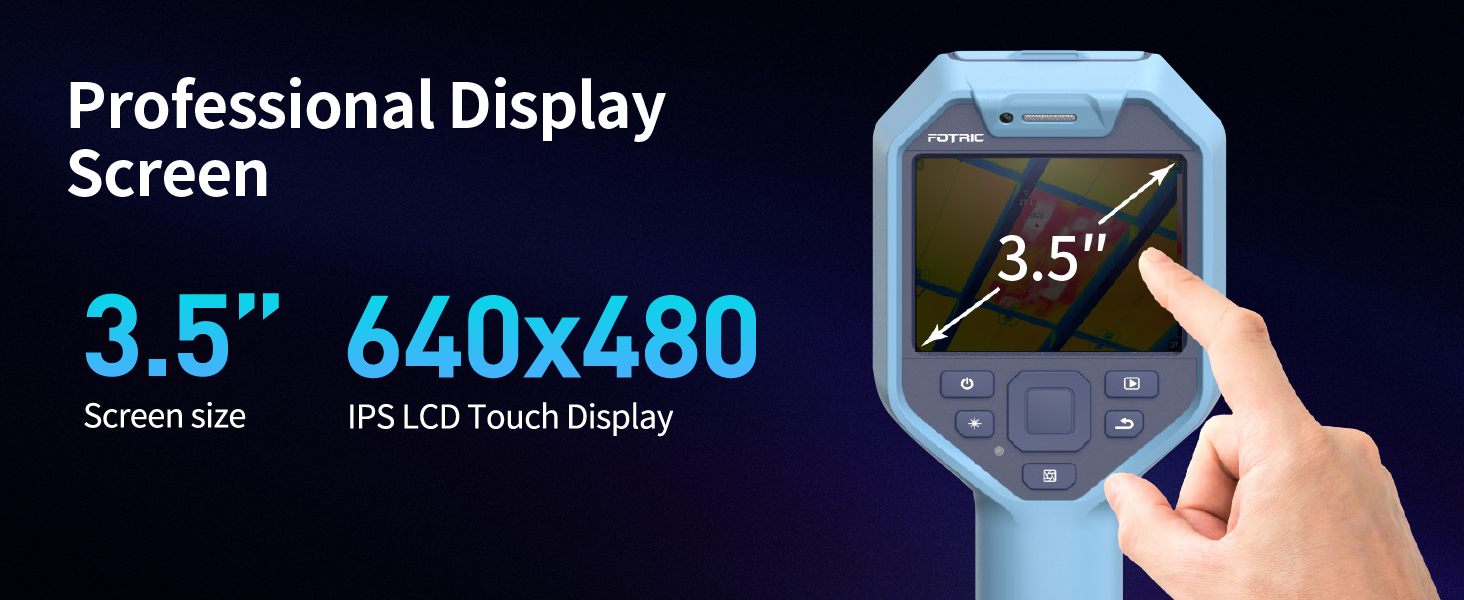

- IP54 dust & water resistant with 2-meter drop protection, perfectly built for job-site use. The 3.5” IPS touchscreen and 5MP visible camera ensure clear viewing even under strong light. Weighing only 1.59 lbs, paired with a swappable 5000mAh battery for 4+ hours runtime, plus a 32GB TF card for convenient image storage.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.

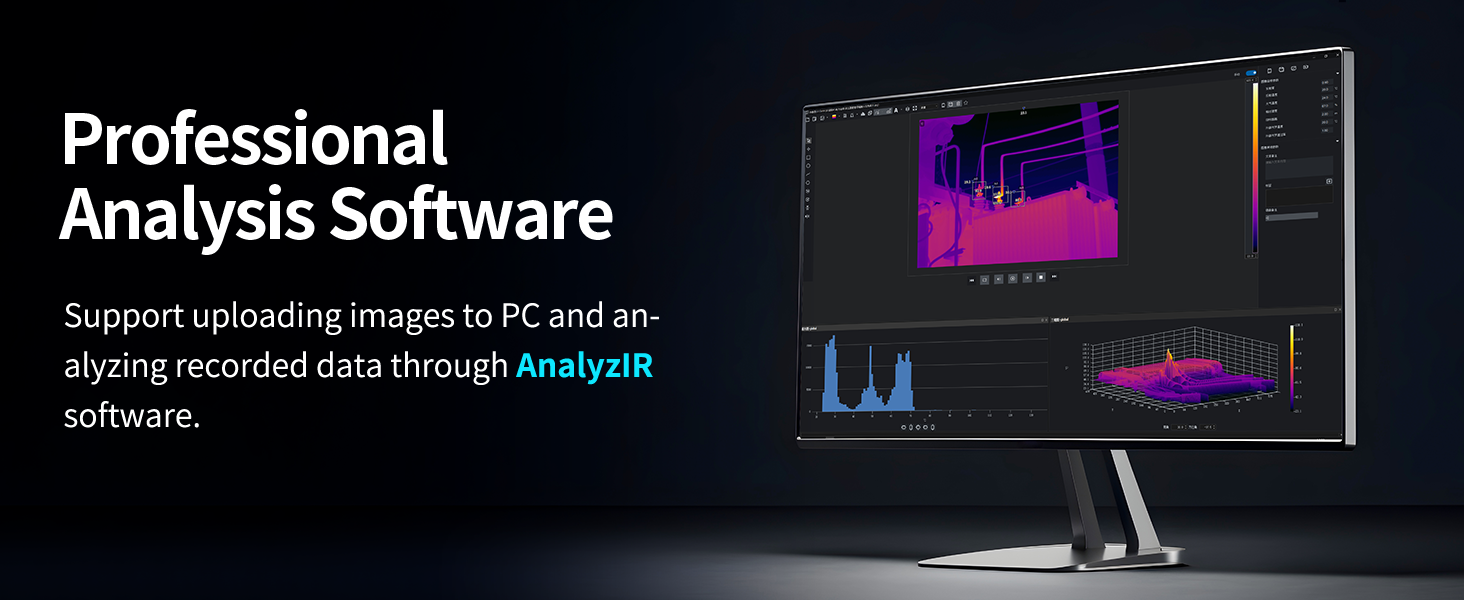

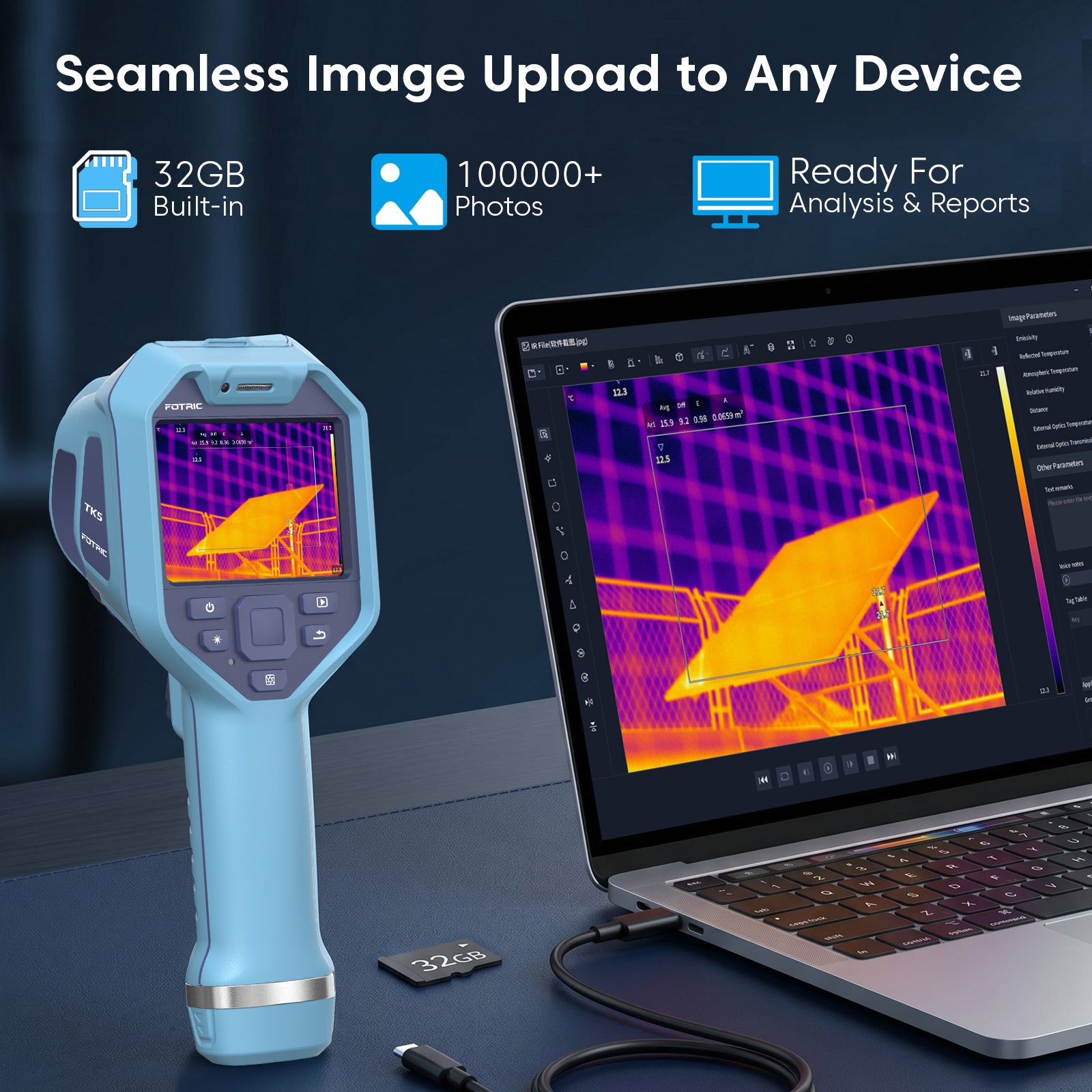

Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Specifications
- Product Model 30Hz

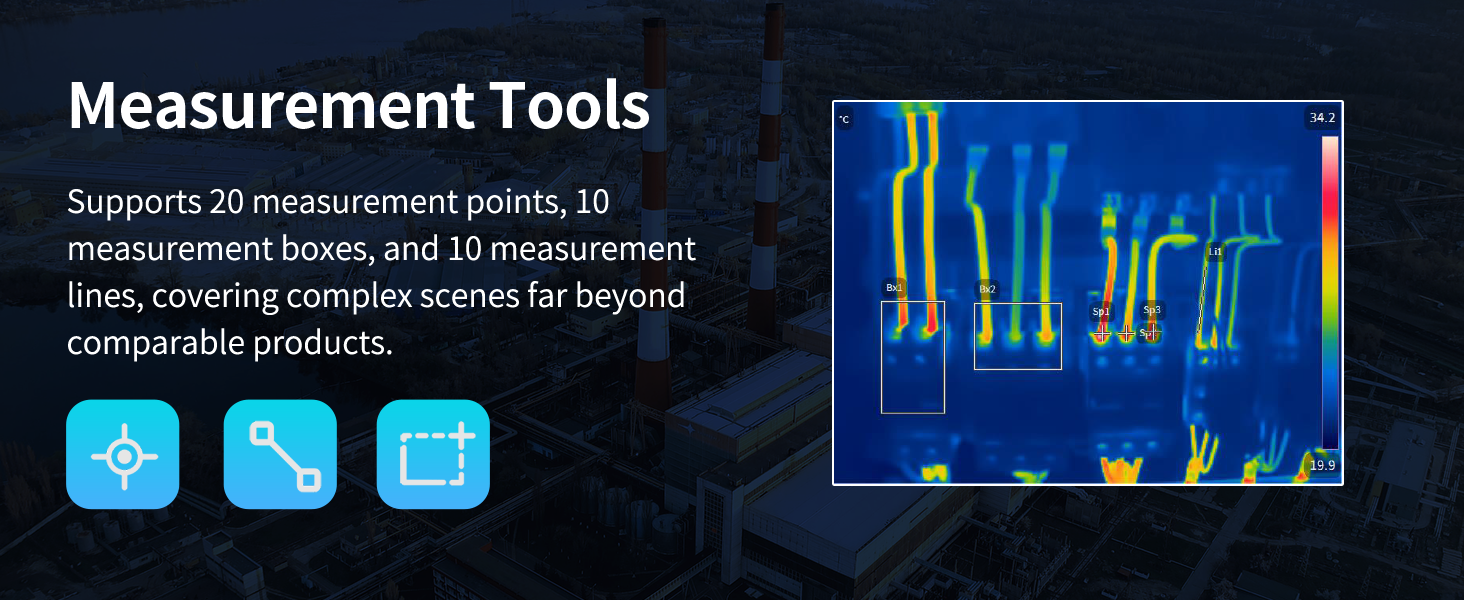

- Measurement Spot 20
- Measurement Line 10
- Measurement Area 10
- Image Mode Thermal image, Digital camera, Picture in Picture & T-DEF® blend
- T-DEF® Support, thermal and visible light image blend, transparency 0% ~100%

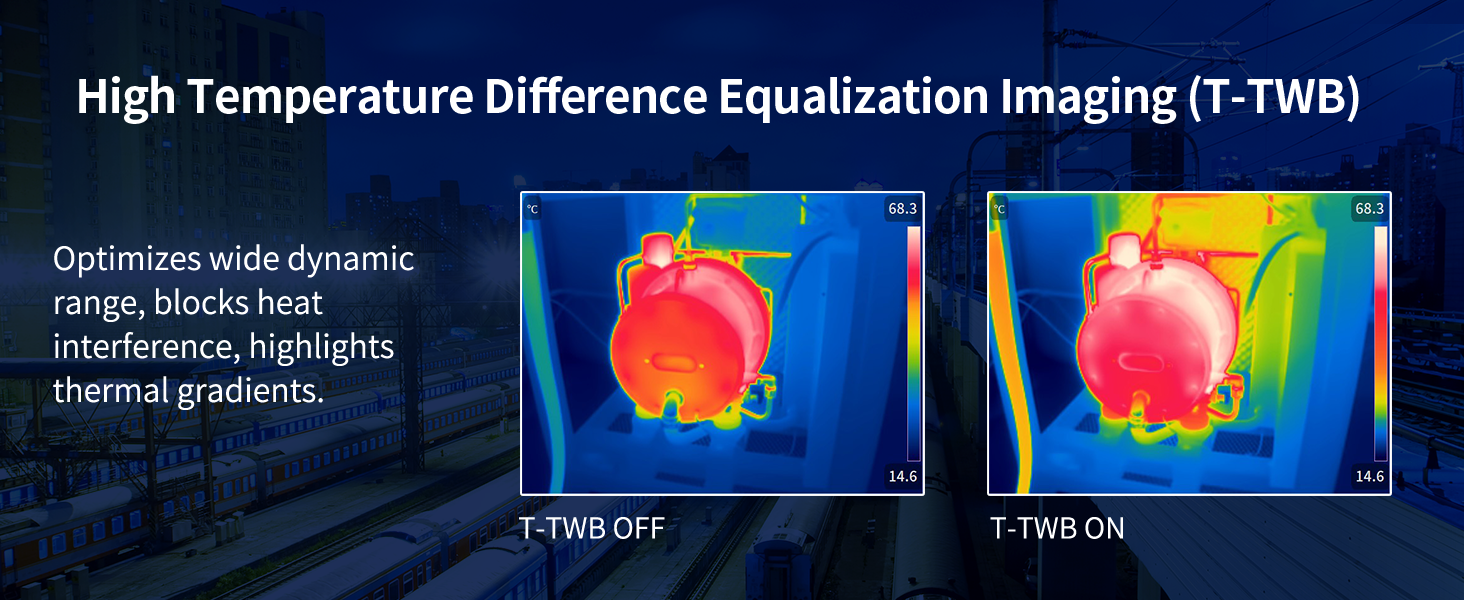

- T-TWB® Support histogram thermal color display

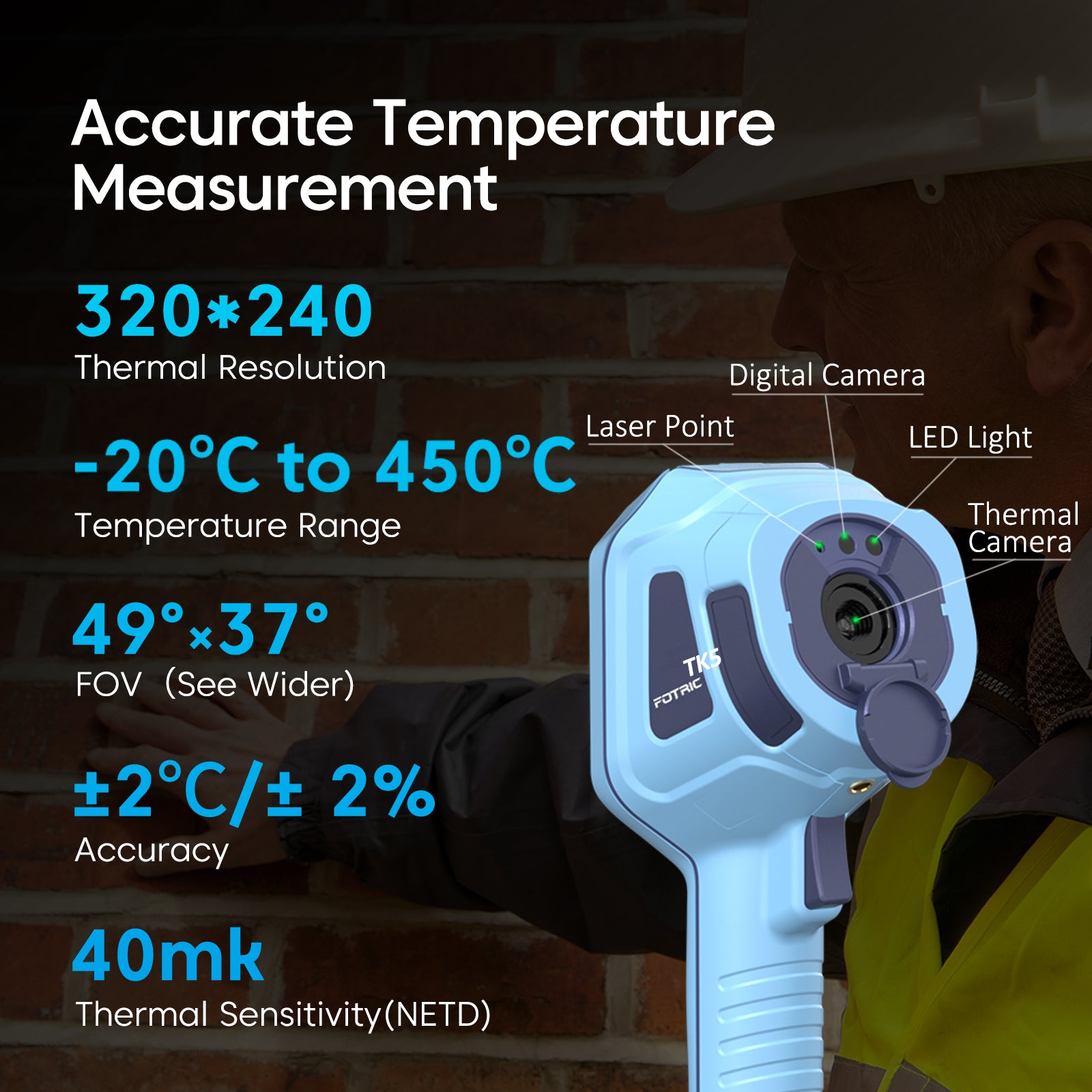

- Infrared Resolution 320×240
- IR Detector Type A ceramic-packaged detector, uncooled FPA infrared detector
- Thermal Sensitivity（NETD) 40mk(0.04° C)@30° C(86 ℉ )
- Detector Pitch 12μm
- Spectral Range 8-14μm
- Field of View (FOV) 49° ×37°

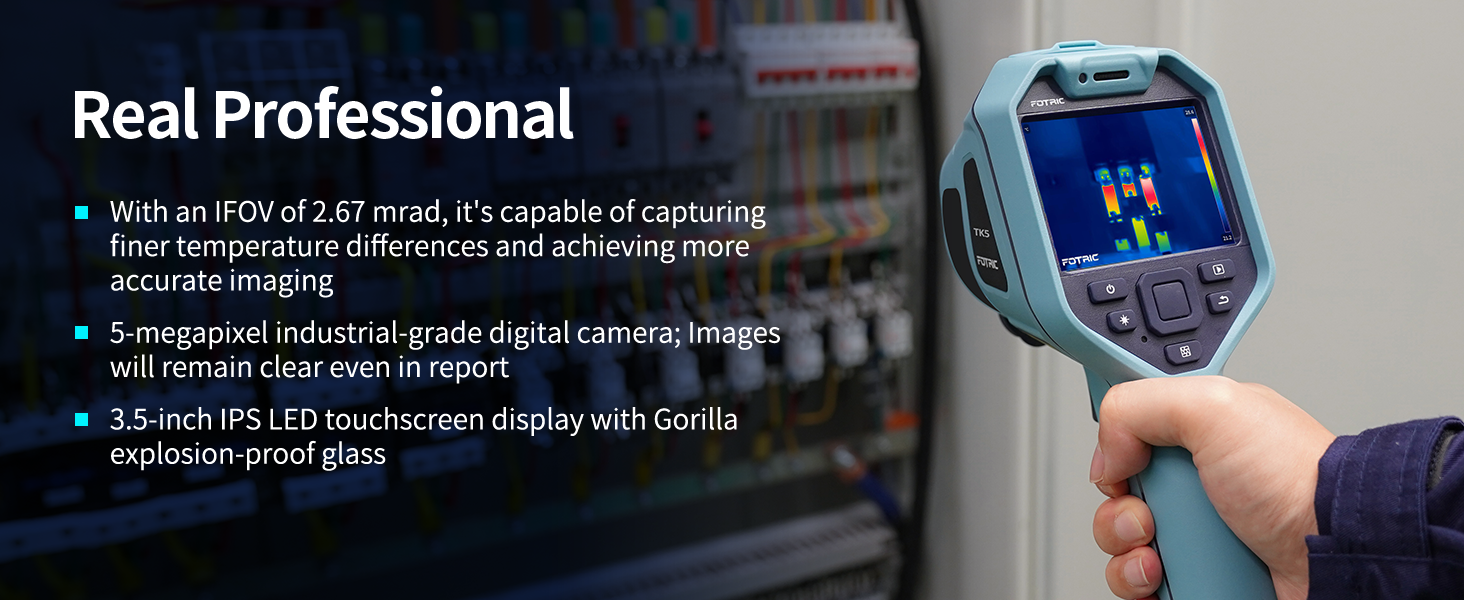

- Spatial Resolution (IFOV) 2.67mrad
- Minimum Imaging Distance 0.4m
- Focus Mode Focus free
- Complete Temperature Range -20℃ ~450℃ (-4~842 ℉ )
- Accuracy ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at 15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter
- Digital Camera 5 MP industrial camera
- Battery Type Rechargeable Li-ion, 3.6V, 5000mAh, ≥ 5 hours
