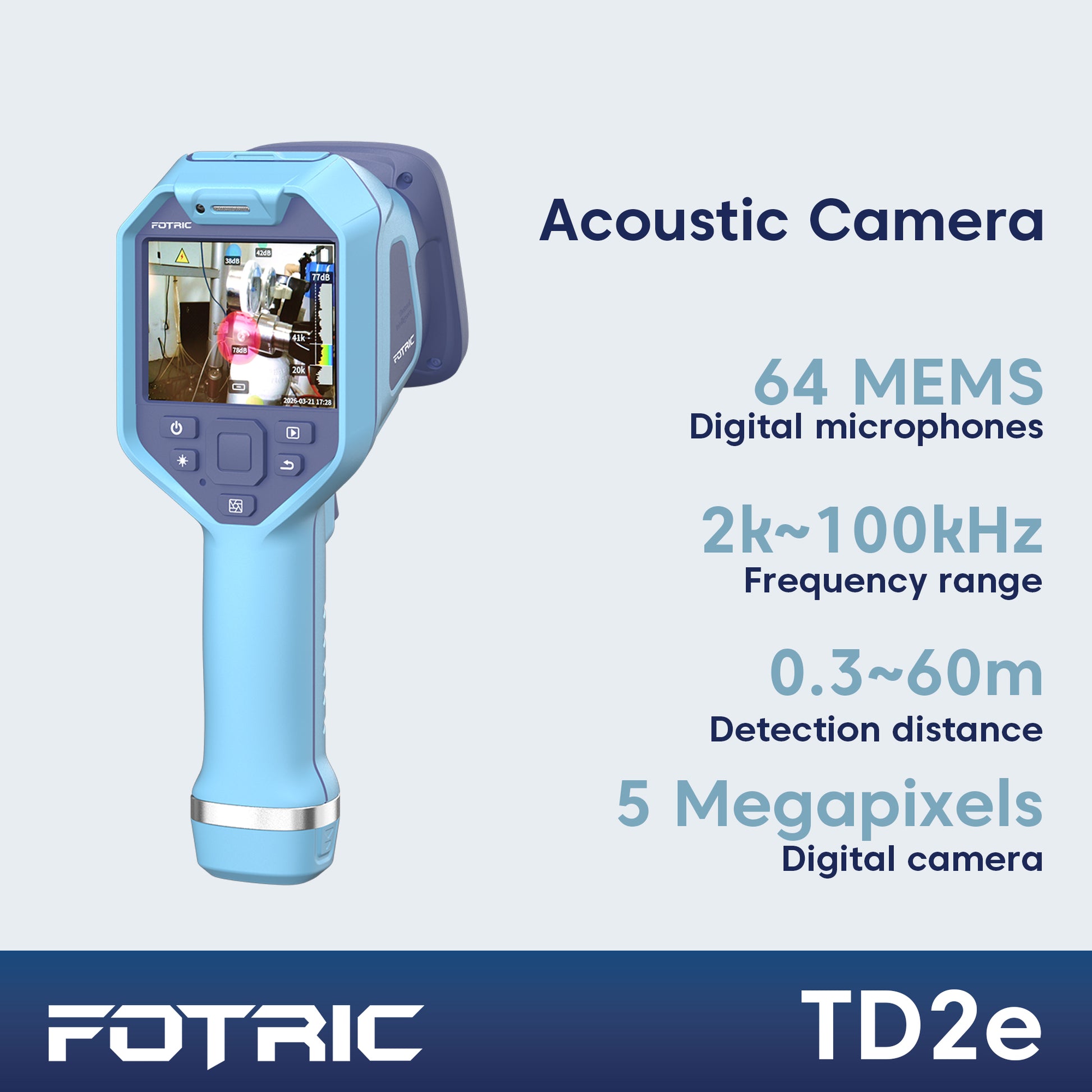

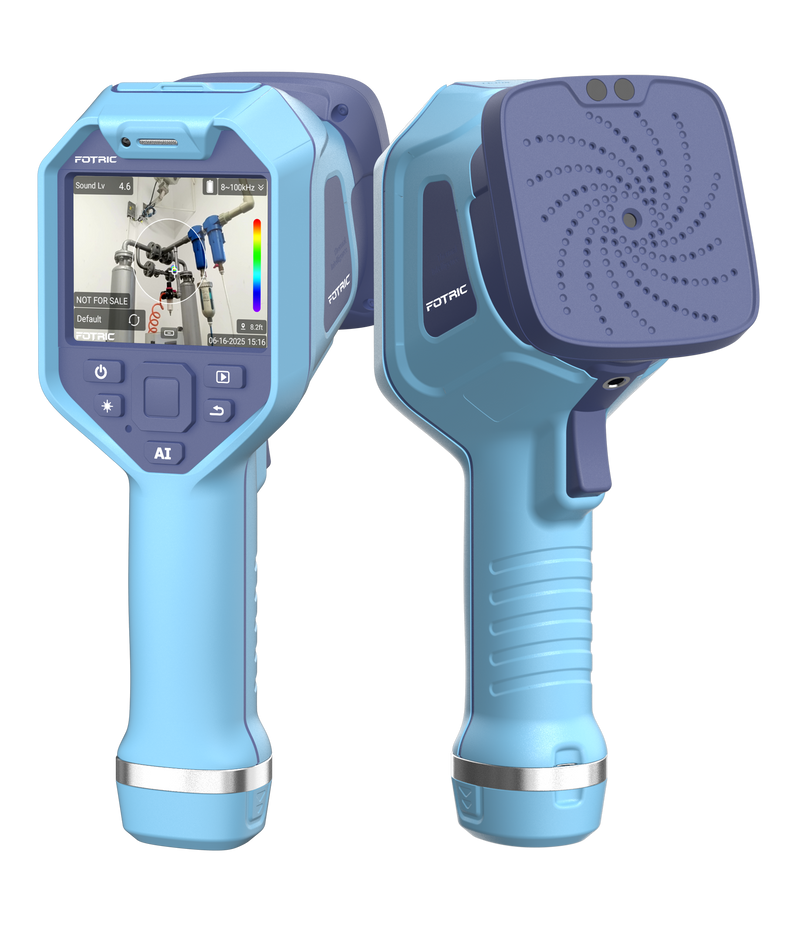

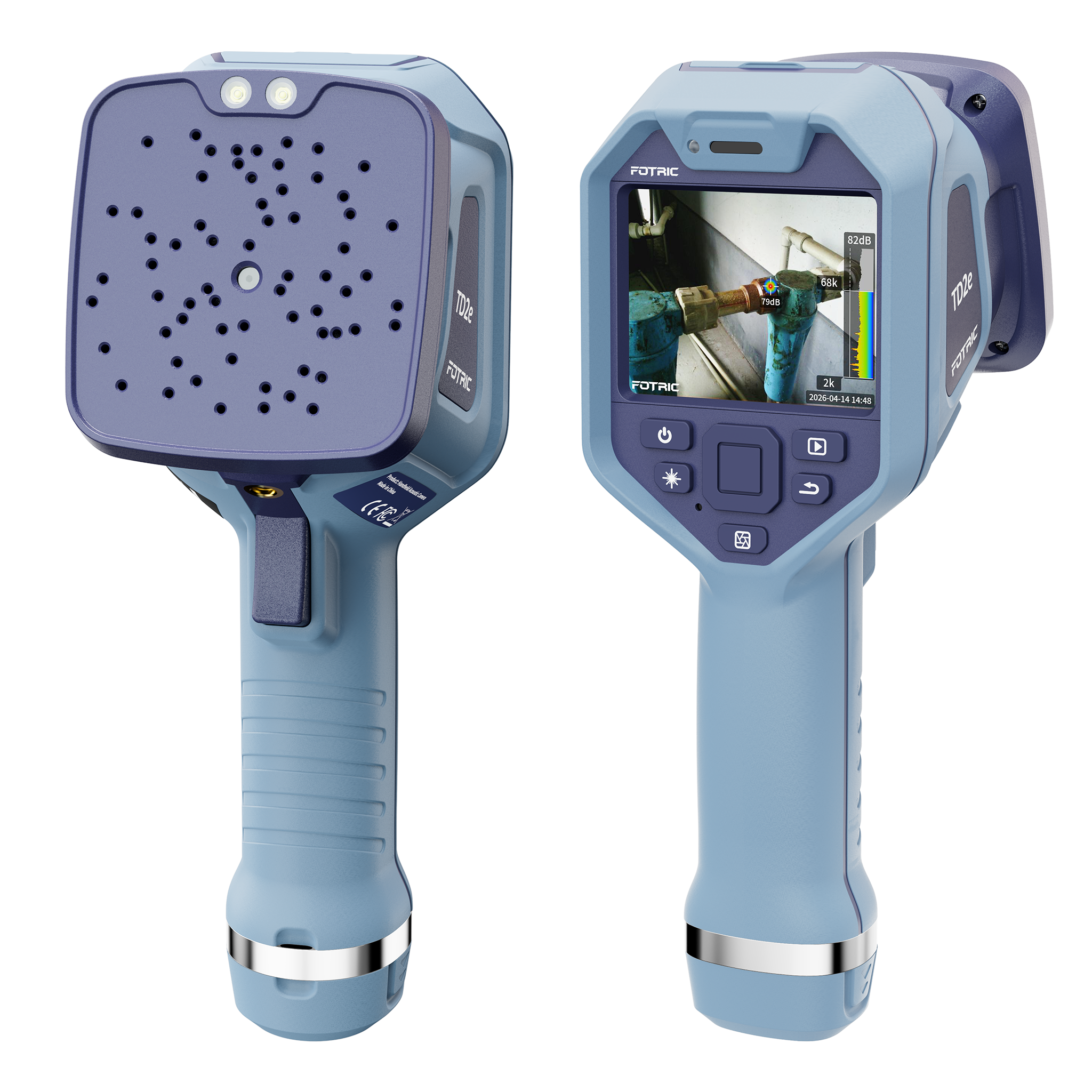

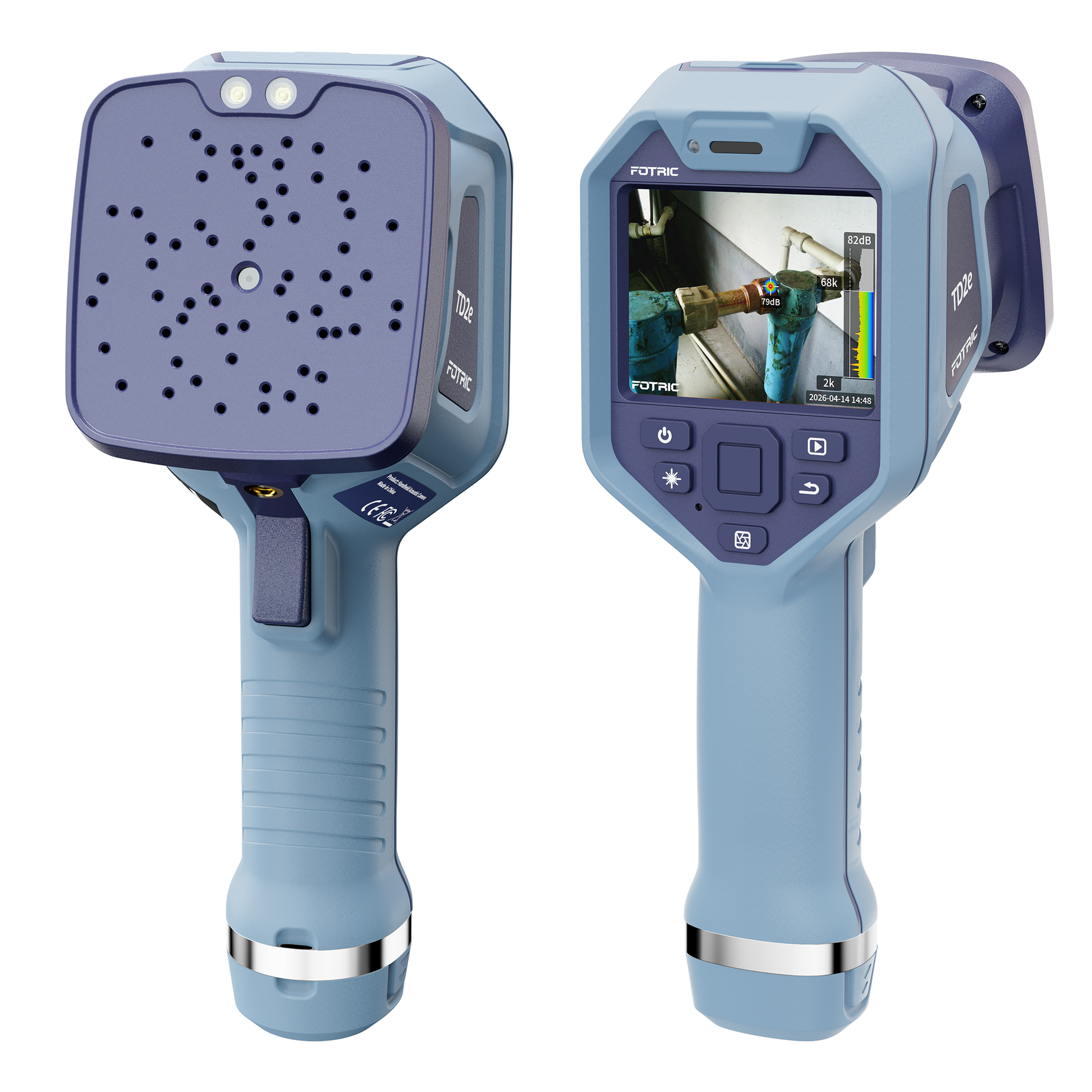

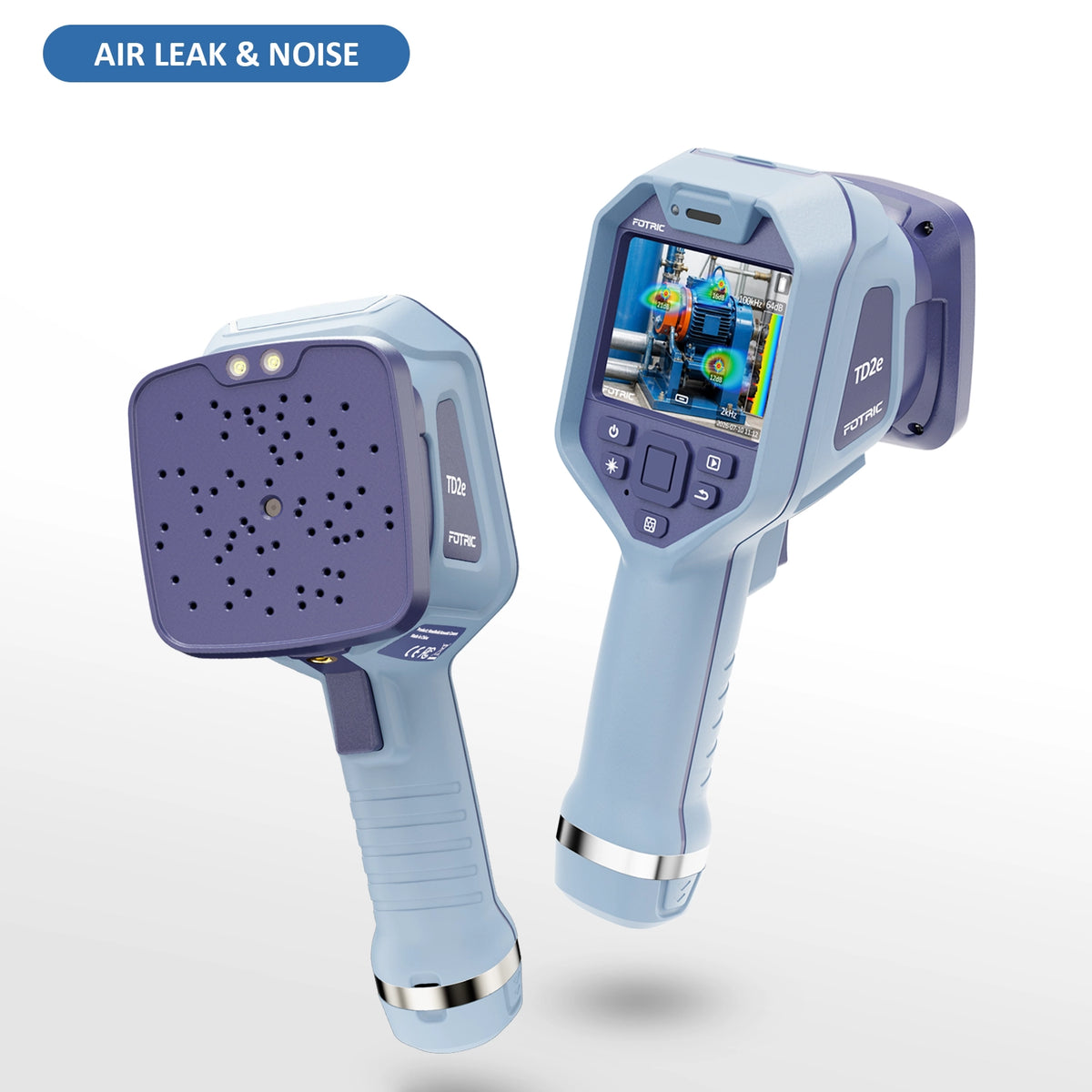

FOTRIC TD2e Acoustic Imager Camera

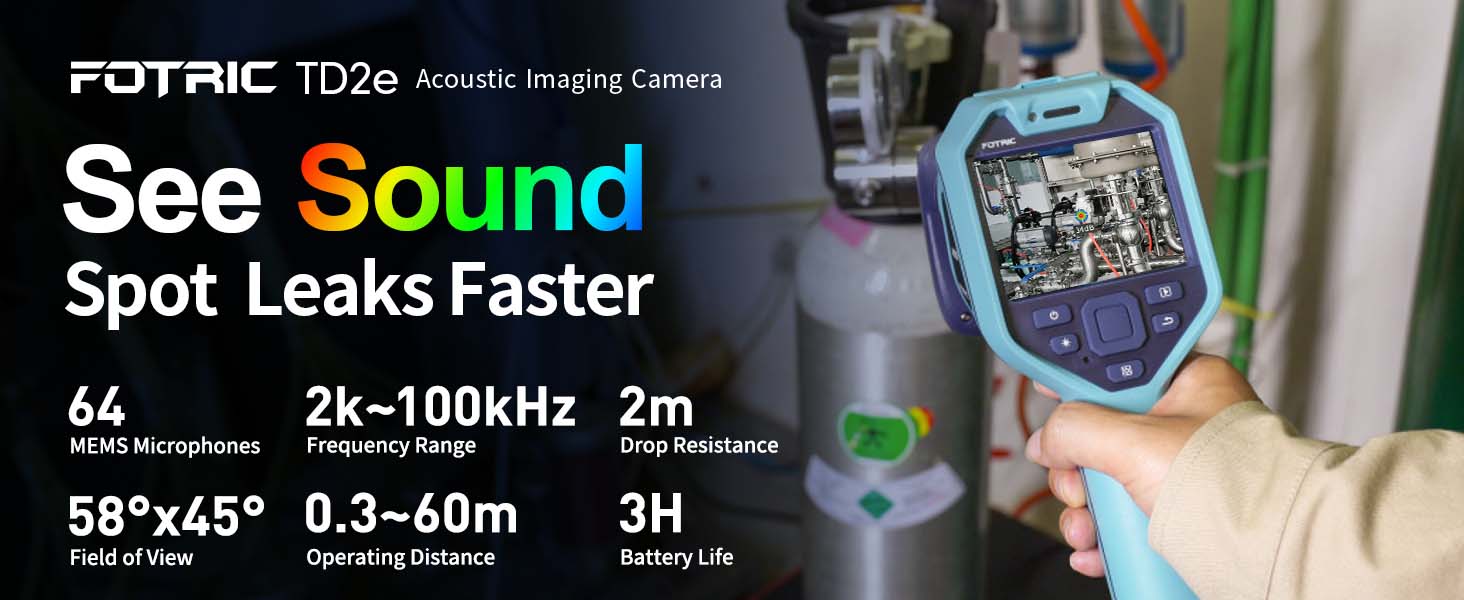

FOTRIC TD2e Acoustic Imager Camera, 64 MEMS Microphones, 0.3–60m Working Distance, 2–100kHz Frequency Range, 58°×45° FOV, for Industrial Leak Detection & Partial Discharge Inspection
- 通常価格
- $1,234.00
- セール価格
- $1,234.00
- 通常価格
-
Shipping calculated at checkout.
-
Advanced Acoustic Imaging Technology

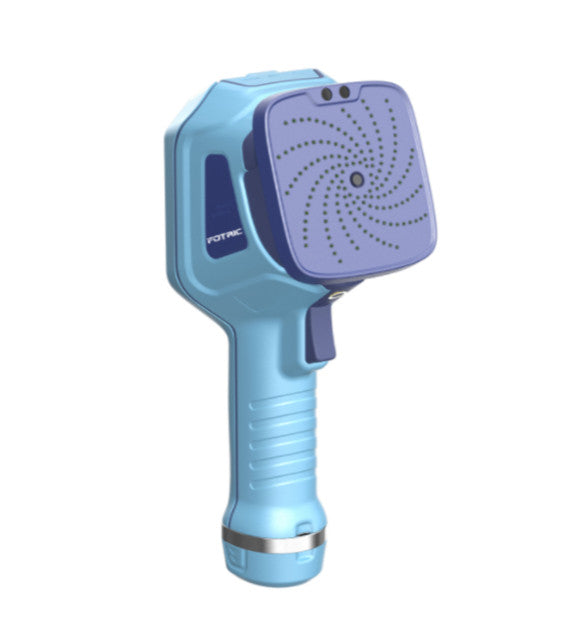

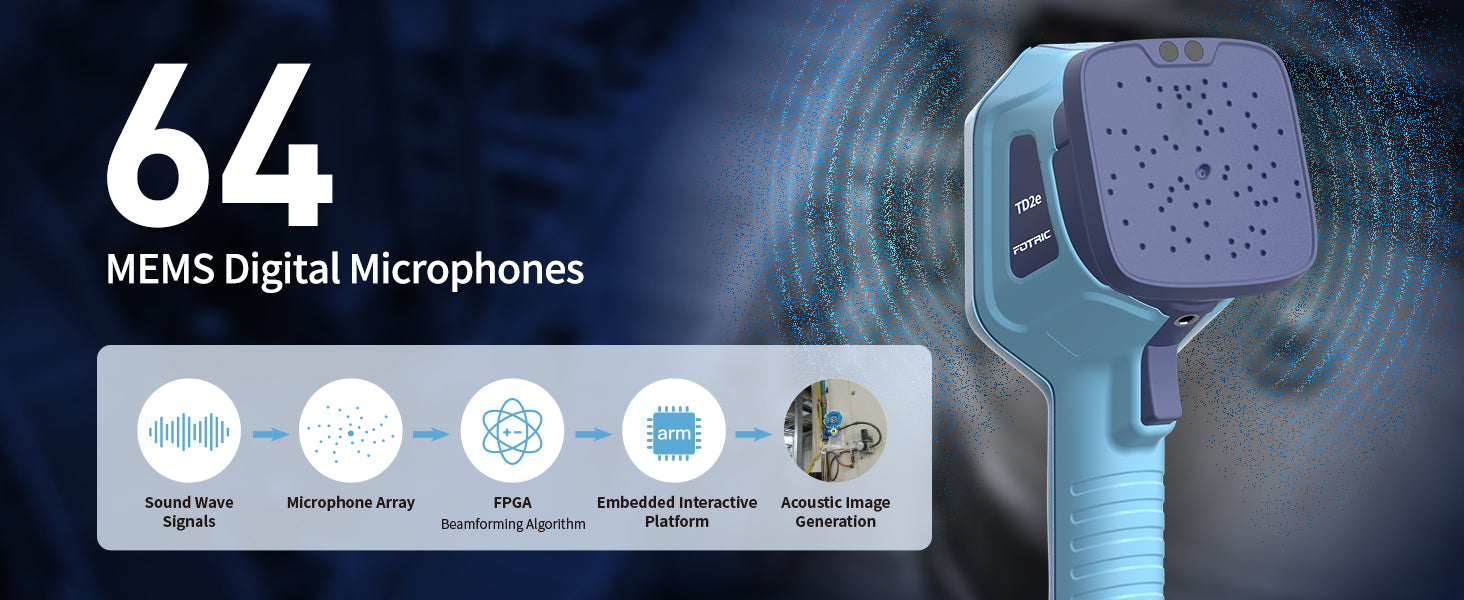

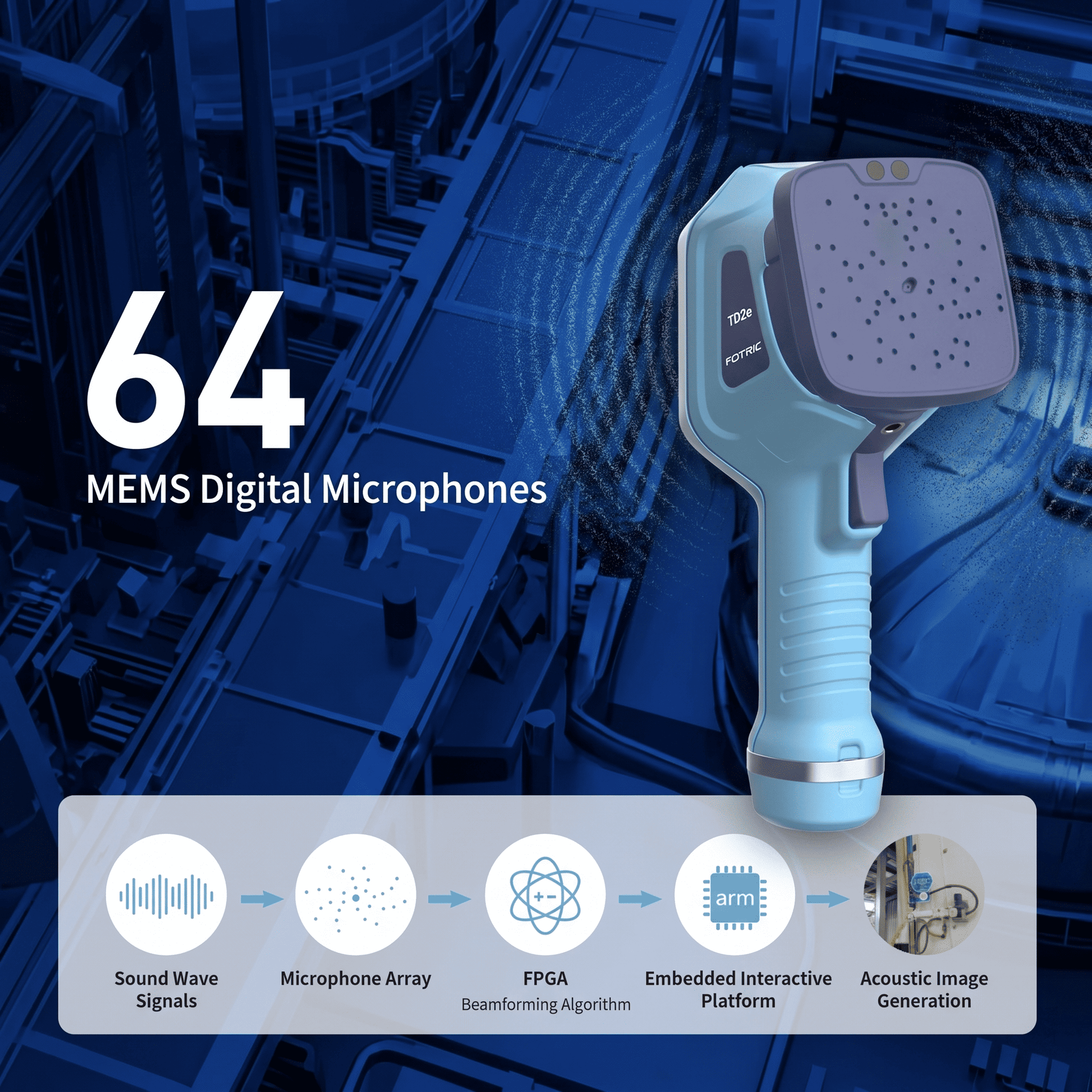

Equipped with 64 high-sensitivity MEMS digital microphones and a 58° × 45° field of view (FOV) for accurate sound source localization. Covers a wide frequency range from 2kHz to 100kHz, with a working distance of 0.3~60m, ideal for detecting both audible and ultrasonic leaks, partial discharge and mechanical anomalies. Also features a 5-megapixel industrial digital camera for detailed visual reference.
-

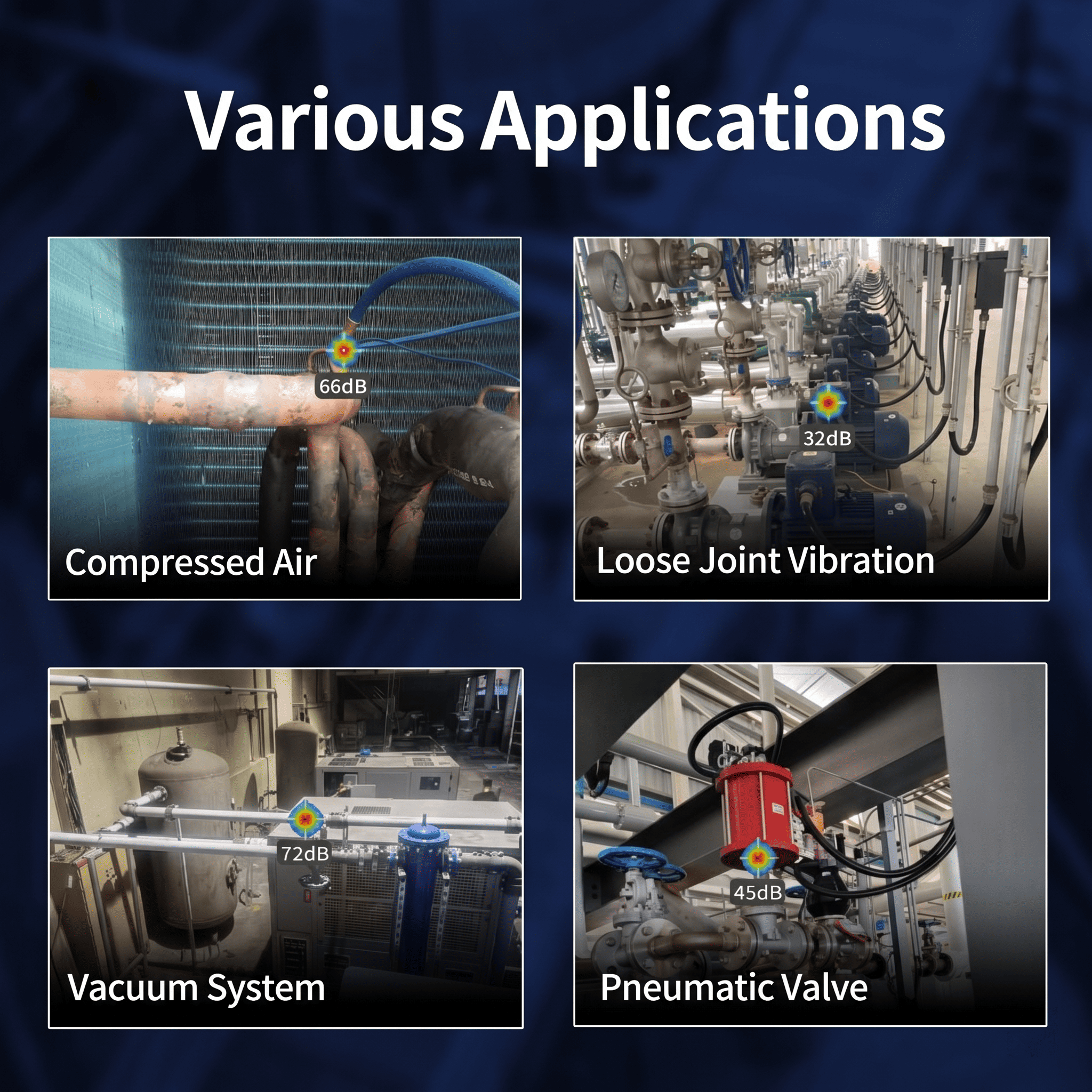

Quickly Locate Various Industrial Leaks & Vibration Problems
FOTRIC TD2e acoustic imaging camera enables compressed air leak detection, vacuum leak identification, pneumatic valve leakage check, loose joint vibration detection and seal integrity verification — all without contact or downtime. Instantly visualize abnormal sound sources in real time to improve maintenance efficiency and prevent costly failures.
-
Acoustic Image Focus & Sound Pressure Level Measurement

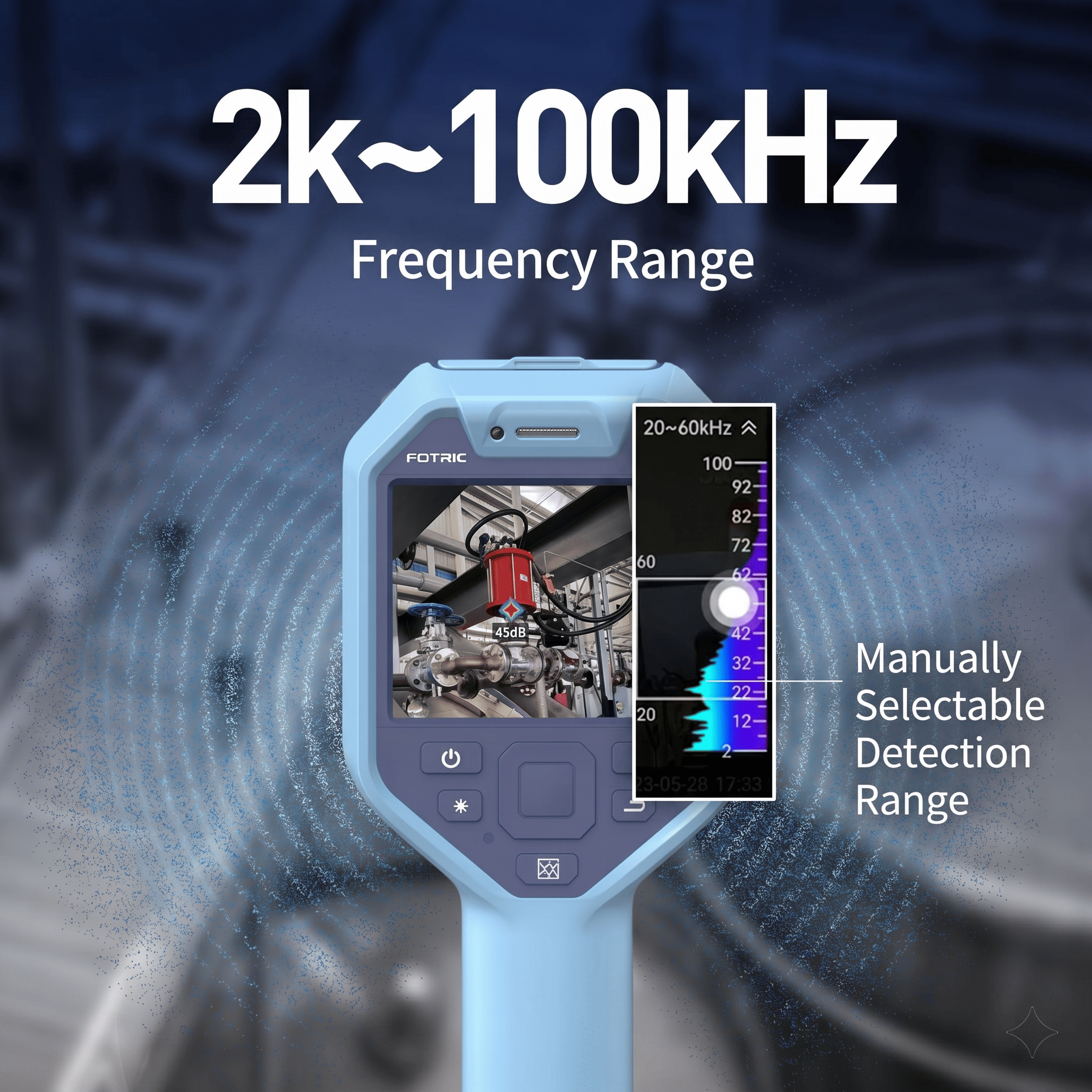

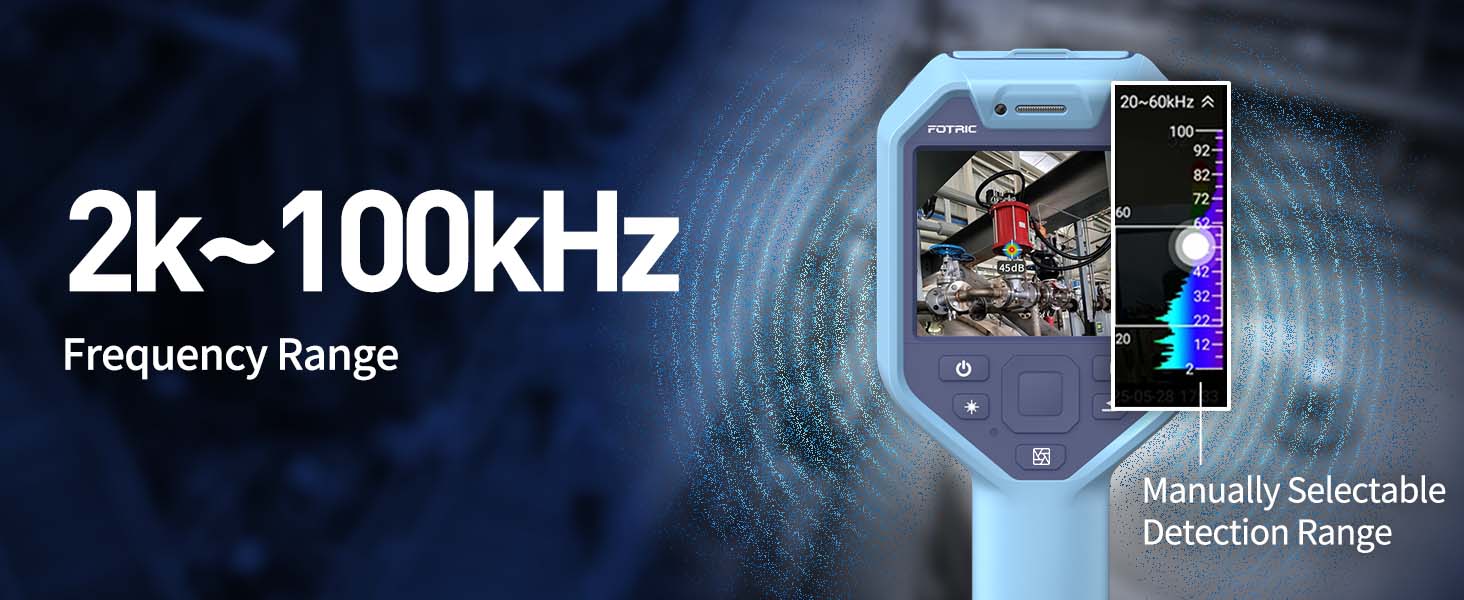

Combines adaptive dynamic noise reduction and micro-detection algorithms to achieve focused localization of sound sources. Supports manual frequency adjustment and peak frequency display, with real-time dB-level data output paired with acoustic images, well-suited for locating and diagnosing a wide range of industrial sound sources.
-

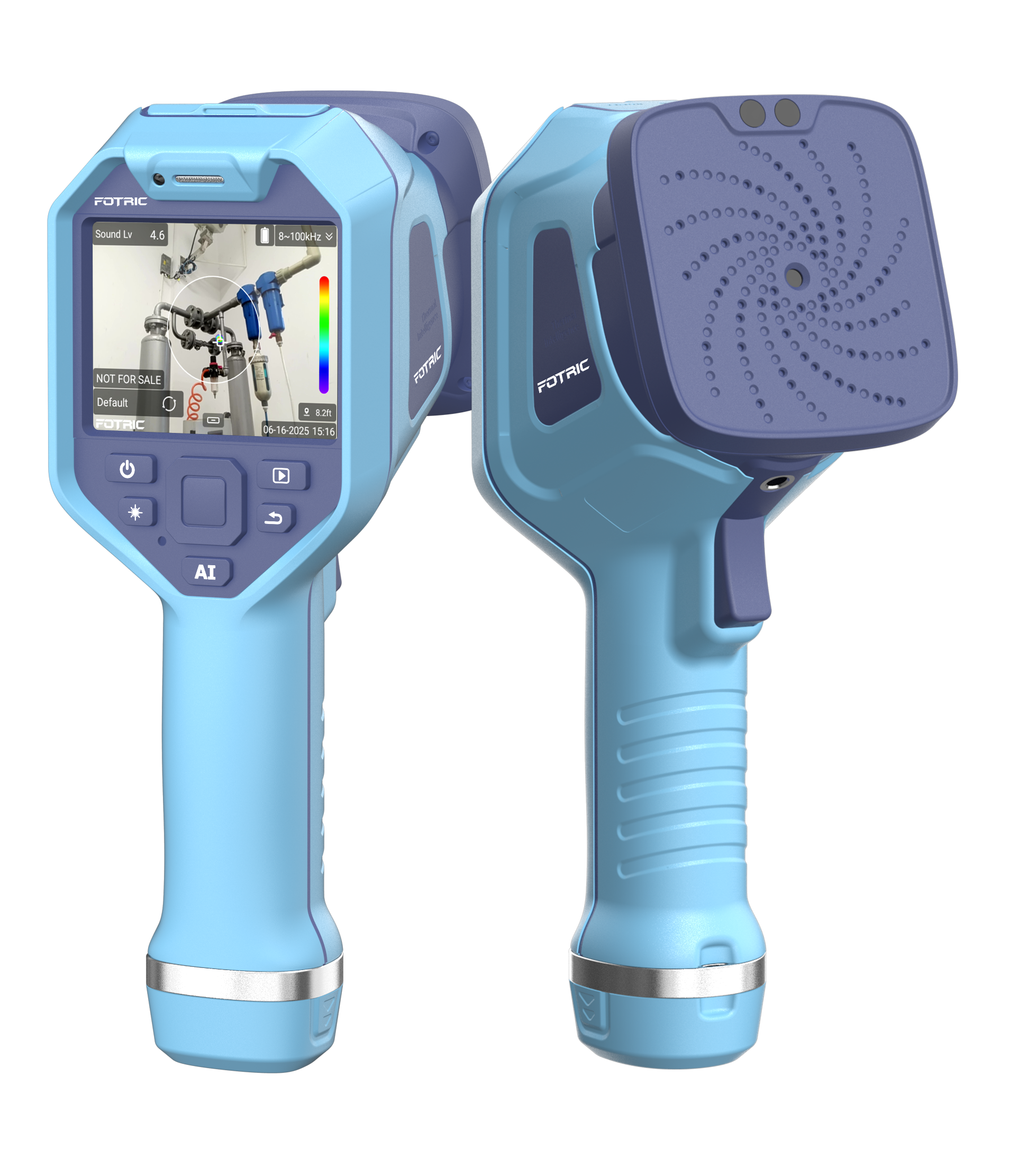

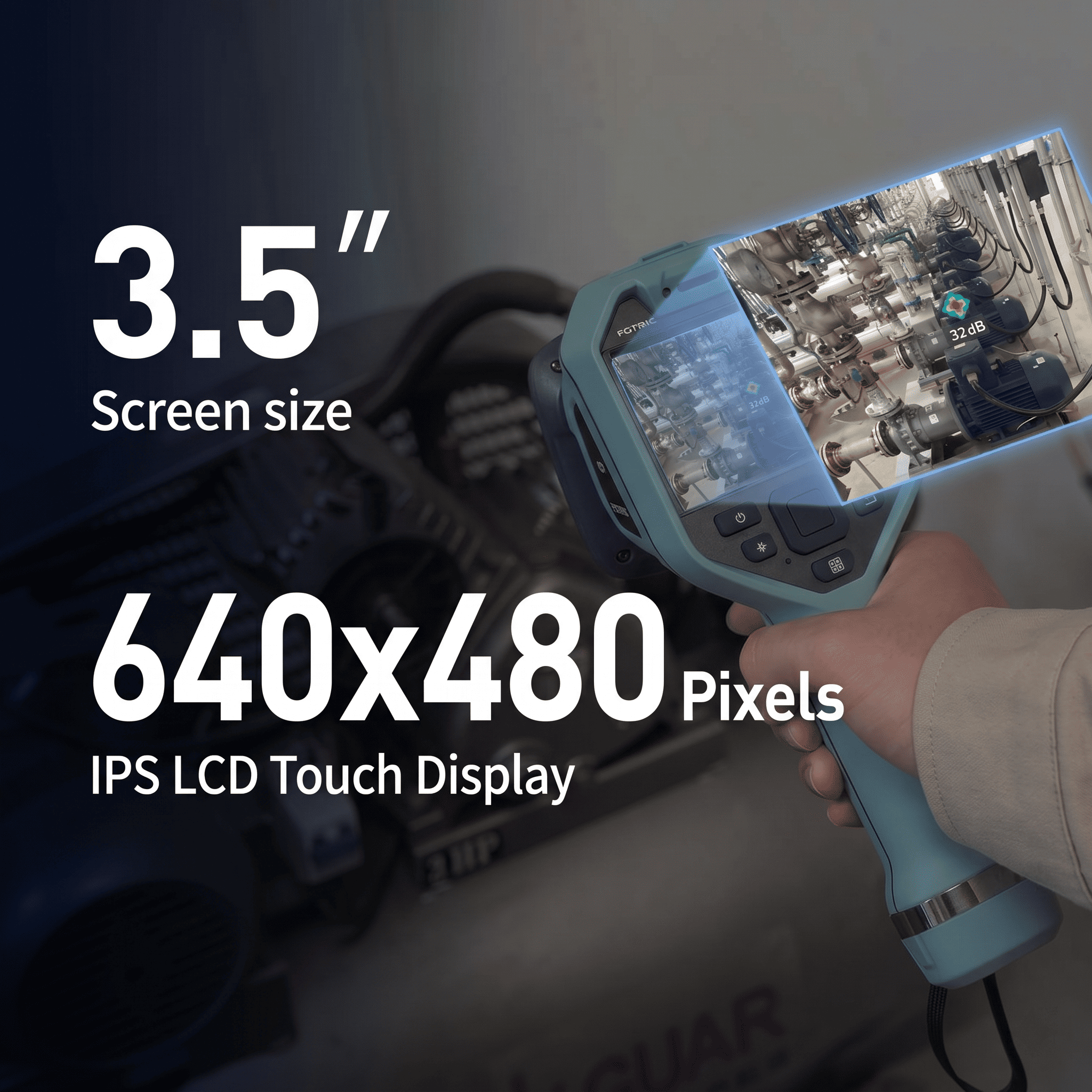

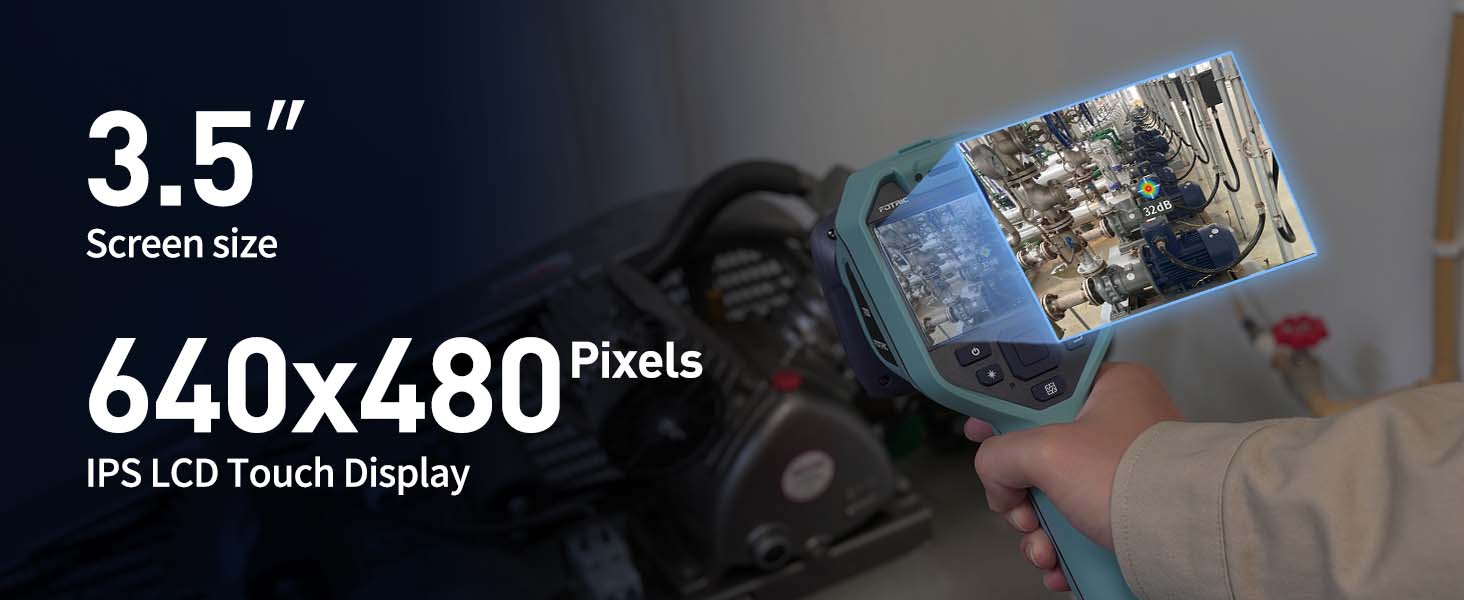

High-Resolution Touch Screen & Multiple Display Modes

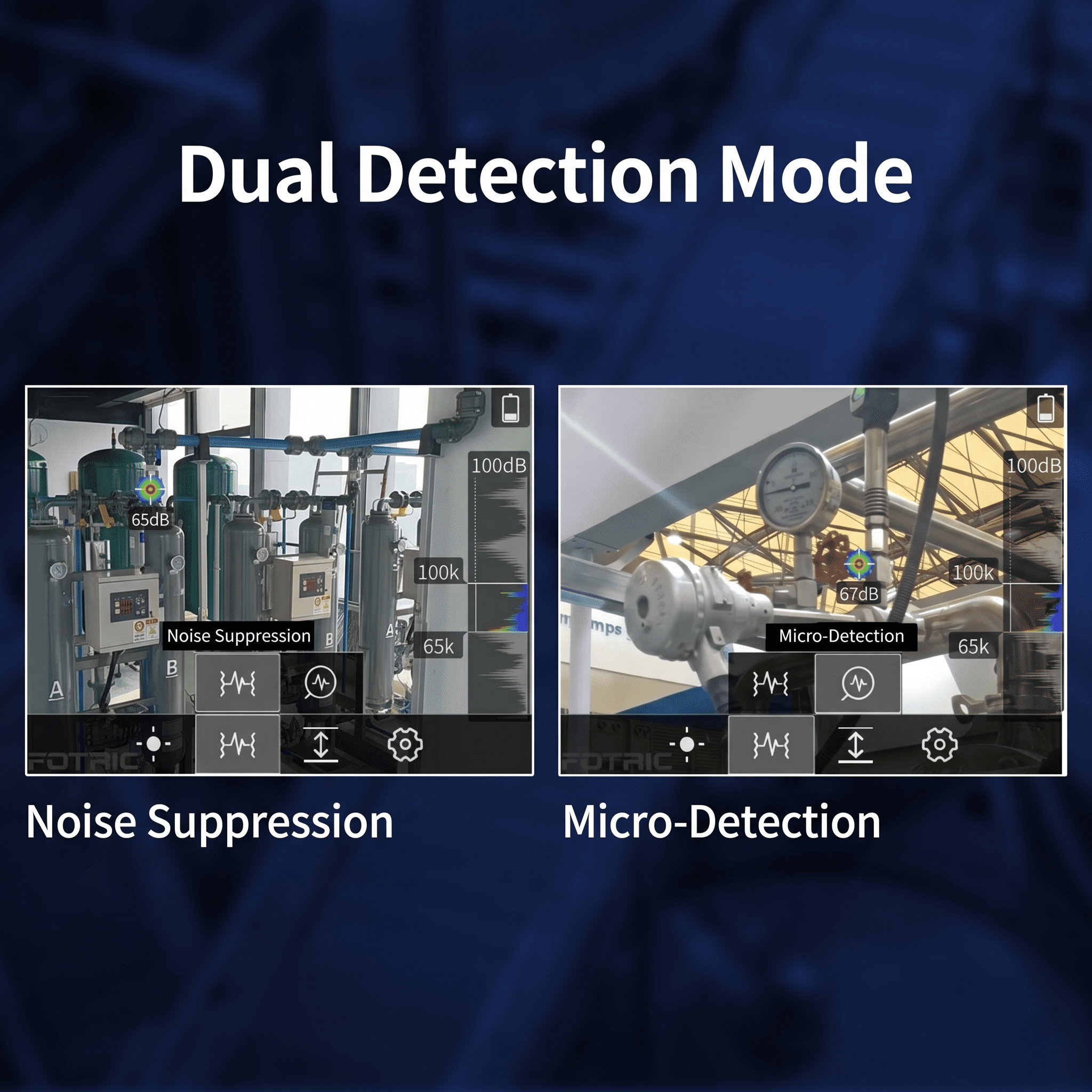

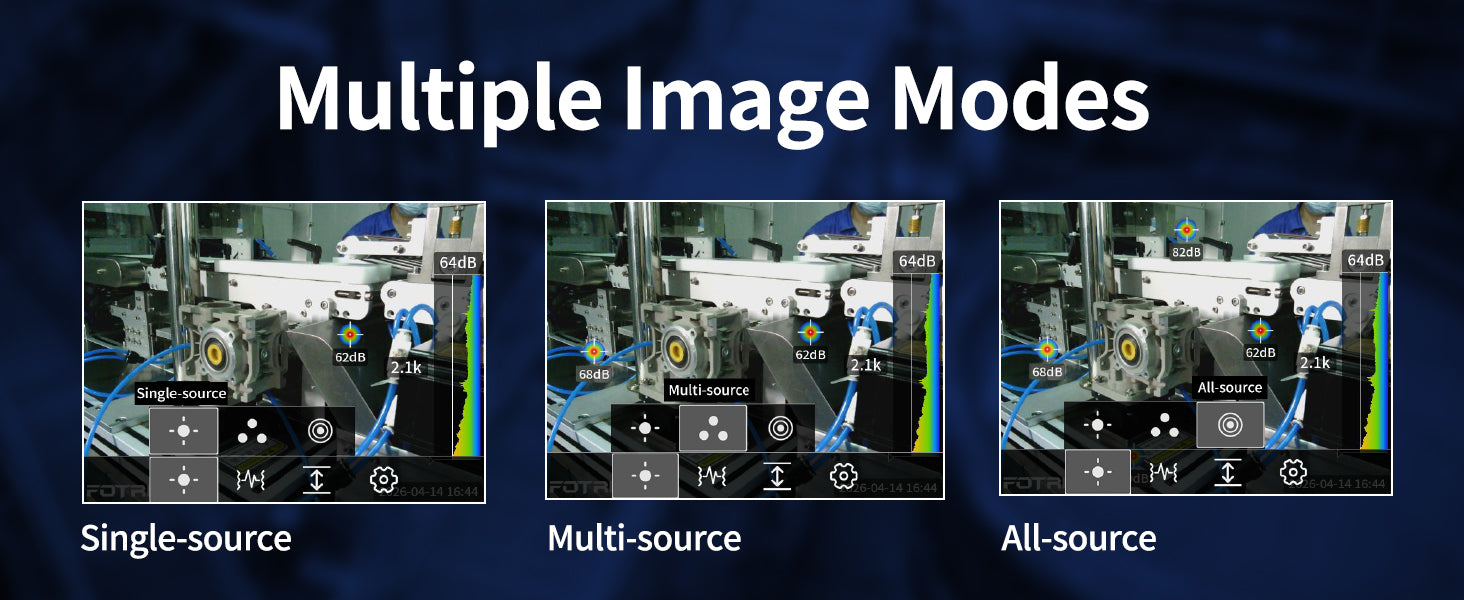

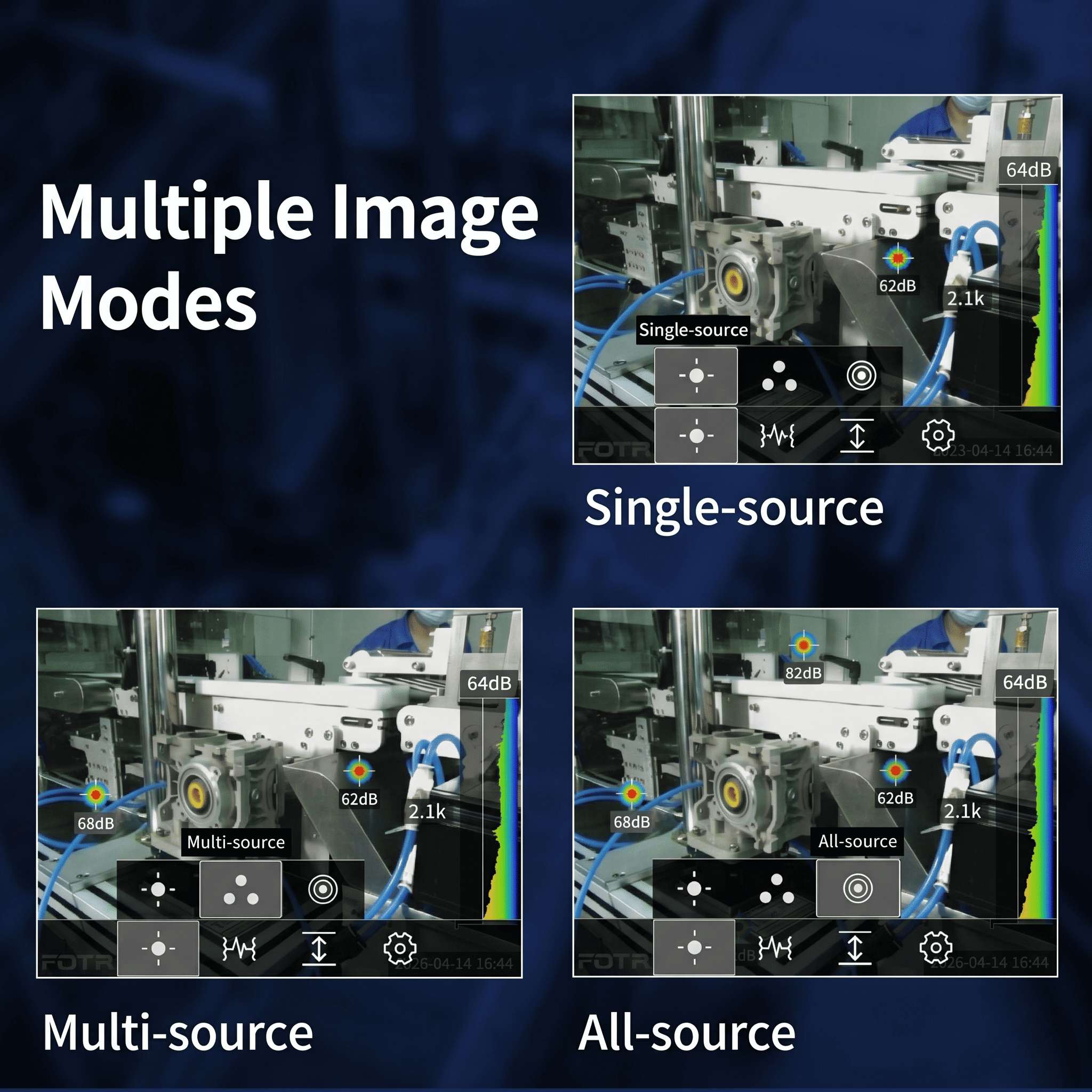

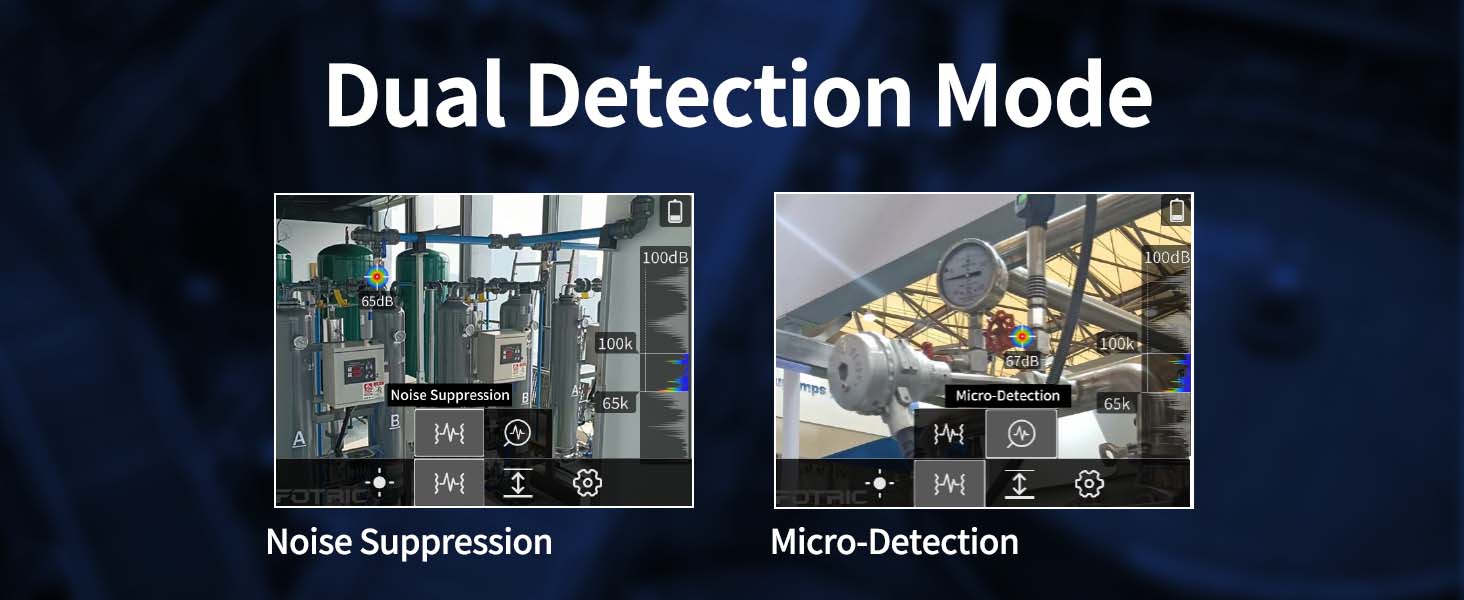

The 3.5" high-resolution IPS touchscreen (640 × 480) with protective cover glass supports single-source, multi-source and all-source display modes. Equipped with noise suppression and micro-detection dual modes, it can overlay sound pressure data on visible-light images for faster, more intuitive diagnostics.
-
Portable & Durable Design
Lightweight and rugged with IP54 rating and 2-meter drop resistance. The FOTRIC TD2e acoustic imager includes a 5000mAh field-replaceable rechargeable battery for ≥3 hours of continuous operation, ideal for field inspections in industrial, HVAC, manufacturing and energy sectors.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Specifications
- Microphone channels 64 MEMS Digital Microphone
- Acoustic image field of view (FOV) 58° *45°
- Sound sampling rate 200kHz
- Image Mode Single-source, Multi-source, All-source
- Working distance 0.3~60m
- Positioning frequency range 2k–100kHz
- Frequency range selection Supports manual adjustment of the frequency range Supports displaying the peak frequency
- Display screen 3.5-inch, 640*480 pixels, IPS LCD touchscreen with explosion-proof cover glass
- Noise reduction mode Filters out low-level sounds to reduce environmental interference
- Micro detection mode Captures faint sounds to avoid missing potential issues
- Digital camera 5MP industrial-grade digital camera
- Image format jpg (acoustic image)
- USB interface USB Type-C, compliant with USB 3.0/2.0 standard
- LED illumination lamp Support flashlight illumination and flash mode
- Battery type 3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable
- Battery operating time ≥ 3 hours per battery(depends on
- Protection rating IP54(GB/T 4208/IEC 60529)
- Drop resistance Designed for 2-meter drop resistance
- Shock resistance 25g(GB/T 2423.5/IEC 60068-2-27)
- Vibration resistance Vibration resistance
